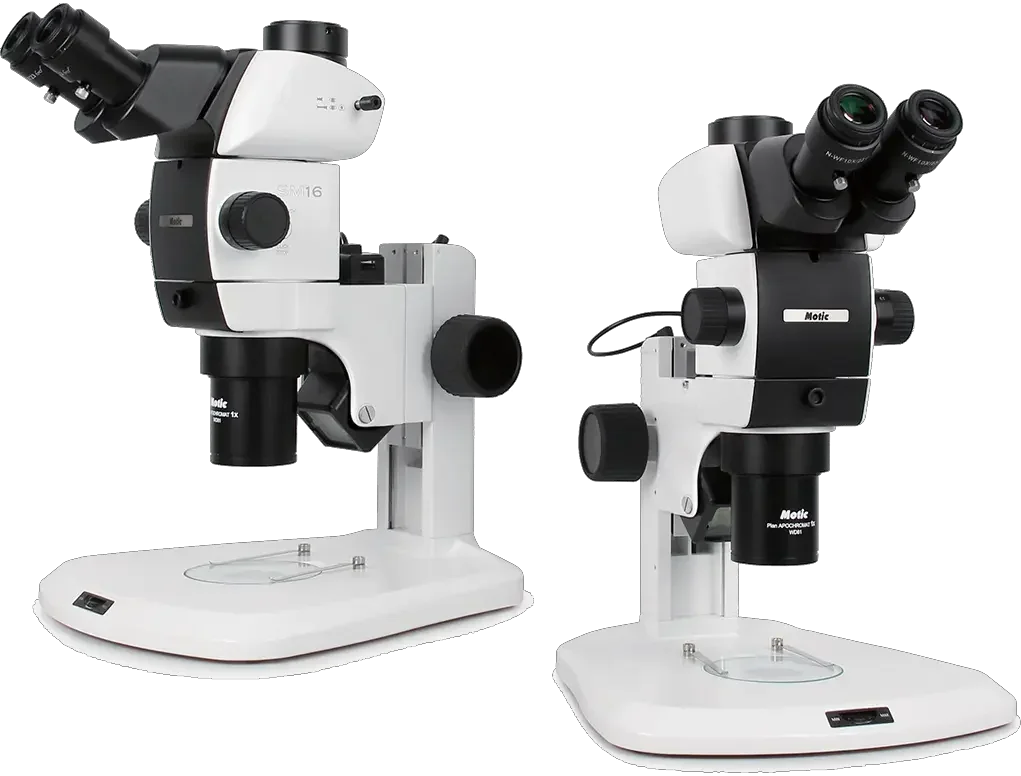

The new master part number SMX consolidates the advanced stereoscopic microscope series: SM7, SM12, and SM16
. The SMX series is designed to provide precise and optimized optical solutions for a wide range of research and production environments, maintaining high performance and operational comfort
.
Below are the technical specifications shared across the series and the fundamental differences between the models:
Common Technical Specifications (SMX Series)
Optical System: All models utilize a Galileo optical system (Parallel optical system) with infinity correction, ensuring faithful color reproduction and high-contrast imaging
.
Ergonomics and Observation: Features a 30° inclined viewing head for maximum comfort, with an adjustable interpupillary distance of 55–75 mm
. Heads are available in binocular or trinocular configurations, with the trinocular version offering an 80/20 light split for simultaneous observation and digital imaging
.
Eyepieces and Diopter: Equipped with N-widefield 10X/23 eyepieces as standard, including a ±5 diopter adjustment to accommodate various users
.
Focusing Mechanism: The systems include a coarse focusing system with adjustable tension and a 120 mm focusing stroke
. The head holder mounting diameter is standard at 76 mm
.
Accessory Compatibility: The SMX series supports a vast range of interchangeable accessories, including objective lenses (such as Plan Achromat 1X/0.5X or APO 1X), various LED illumination options (oblique, coaxial, or ring), and equipment for polarization and darkfield observation
.
ESD Protection: The series features integrated electrostatic discharge (ESD) protection that complies with UL and CL standards, which is essential for inspecting sensitive electronic components
.
Key Technical Differences Between Sub-Series
The primary differences between the models lie in their zoom capabilities, magnification ranges, and maximum resolution
:
SM7 Series: Offers a 7:1 zoom ratio with a body magnification range of 0.8x to 5.6x
. It features a 10-step click-stop mechanism for repeatable magnification settings and achieves a maximum resolution of 618 lp/mm
.
SM12 Series: Provides an enhanced 12:1 zoom ratio, allowing for a broader magnification range of 0.67x to 8.0x
. This series includes a 12-step click-stop mechanism and a maximum resolution of 600 lp/mm
.
SM16 Series: Features the highest zoom capability with a 16:1 zoom ratio, enabling rapid transition from overall observation to detailed inspection within a range of 0.60x to 9.8x
. Like the SM12, it includes a 12-step click-stop but offers the highest maximum resolution in the series at 666 lp/mm
.
The ability to choose between different zoom ratios allows for precise matching of the system to specific task requirements, from routine work to complex inspections requiring extreme resolution and a wide working range without changing objectives
.
Please contact us to help you choose the correct model for your specific requirements from all available options.
