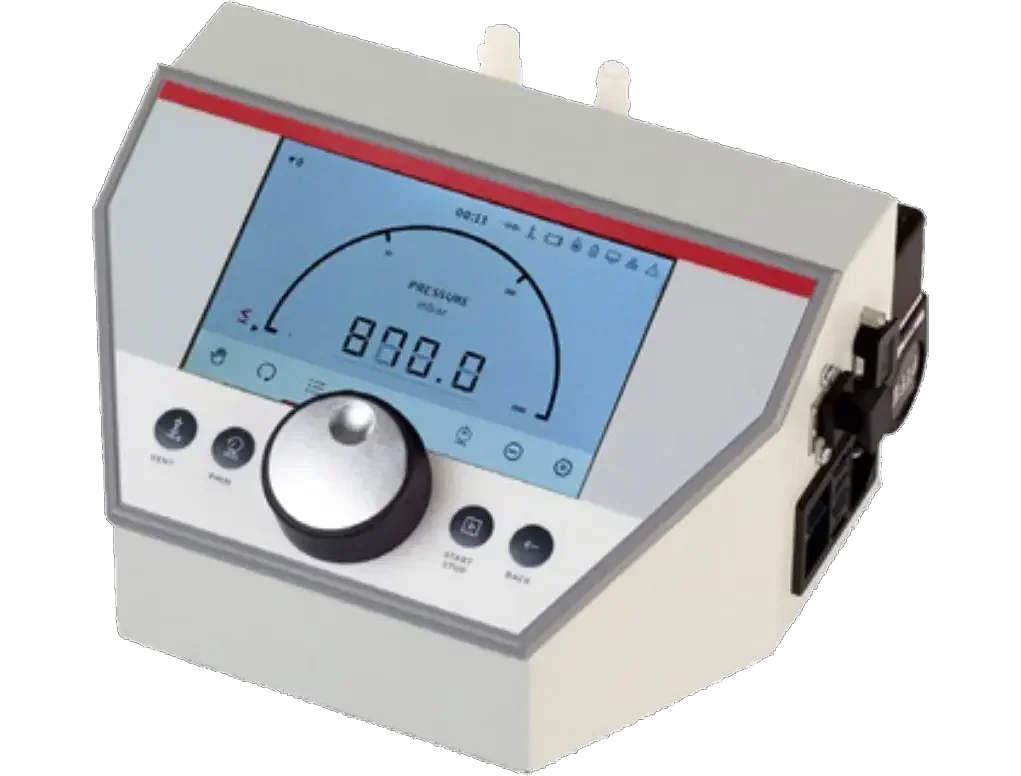

Measures and displays vacuum pressure both graphically and digitally.
The vacuum pressure can be controlled from 1100-1 mbar
Pressure Reading Accuracy <+ 0.3% Full Scale
Control Accuracy, mbar or Torr: +1
Controlling the pressure can be done in real-time. In addition, a timed ramp function allowing raising & lowering pressure is built in for applications such as distillation and vacuum drying.
Direct communication can be maintained between PC and controller to for logging data via RS232 or LAN.
Dimensions: W x D x H mm: 195 x 178 x 105
Weight kg: 1.5 kg
