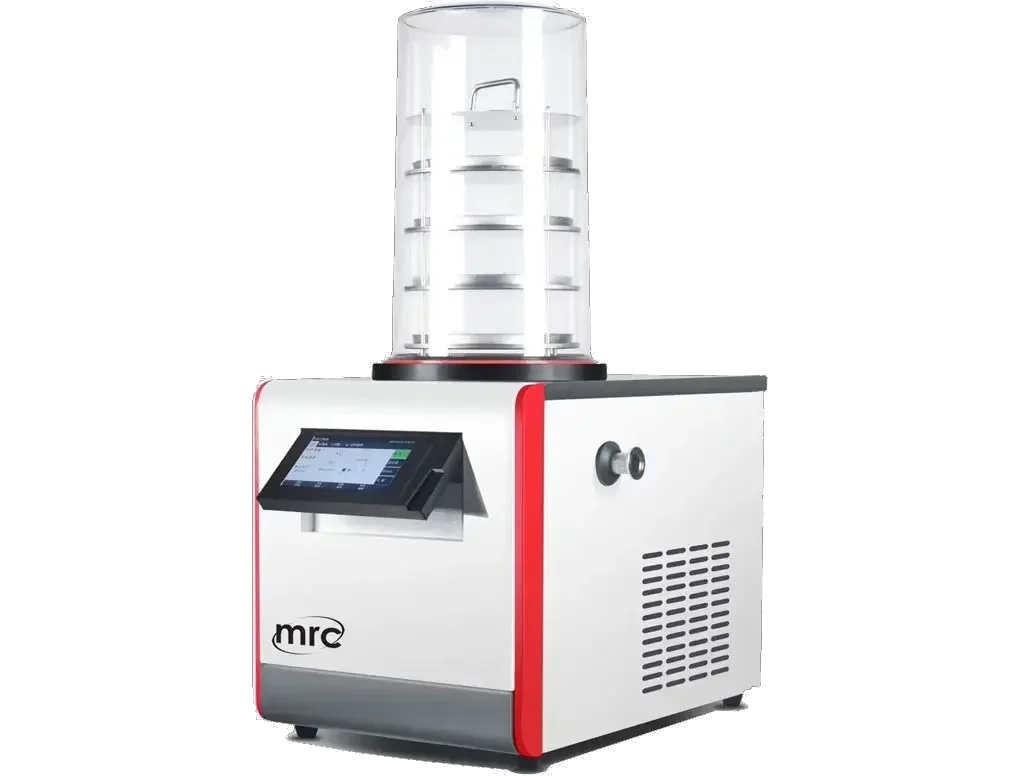

Vacuum freeze dryer - basic

model: basic
drying area ㎡: 0.12
tray size mm: 200*4
Condensor L: 1.5
No-load temperature
℃: <--60 (-80）
vacuum Pa: <10pa
space mm : 70
vails number for reference 22: 260
vails number for reference 16: 480
vails number for reference 12: 920
Ability to capture water Kg: 3
vacuum pump is included
power: V/Hz 220V/50Hz or 110V 60hz
power W: 850
main size mm: 420-*680*460MM+400mm

CATALOG NUMBER: FDL2-10N-2-60A

WEIGHT(Kg) 33.00

L(m) 60.00

W(m) 78.00

H(m) 70.00

model: basic
drying area ㎡: 0.12
tray size mm: 200*4
Condensor L: 1.5
No-load temperature
℃: <--60 (-80）
vacuum Pa: <10pa
space mm : 70
vails number for reference 22: 260
vails number for reference 16: 480
vails number for reference 12: 920
Ability to capture water Kg: 3
vacuum pump is included
power: V/Hz 220V/50Hz or 110V 60hz
power W: 850
main size mm: 420-*680*460MM+400mm

TECHNICAL DATA

FUNCTIONS

DESCRIPTION

model: basic
drying area ㎡: 0.12
tray size mm: 200*4
Condensor L: 1.5
No-load temperature
℃: <--60 (-80）
vacuum Pa: <10pa
space mm : 70
vails number for reference 22: 260
vails number for reference 16: 480
vails number for reference 12: 920
Ability to capture water Kg: 3
vacuum pump is included
power: V/Hz 220V/50Hz or 110V 60hz
power W: 850
main size mm: 420-*680*460MM+400mm
