Scalable Infinity Corrected Optical System (CCIS).
Trinocular erect image observation tube head (FN25).
Widefield (FN25) eyepiece 10X/25mm with adjustable diopter.
Reflected intermediate illumination system for BD observation.
100W halogen lamp house.
Coded quintuple (5) revolving nosepiece with slot for DIC, for BD.
4x4 inch right hand stage with metal stage plate, stroke 104 x 102 mm.
PA25ND6 neutral density filter and PA25LB LBD filter included.
Integrated power supply for 12V/100W light adjustment, voltage indicator with IL and ECO functionality.
3D control box and control pad.
Moticam S6 sCMOS sensor, 3072 x 2048 pixels, 6.3 MP.
0.5x C-mount camera adapter.
Motic Analysis Professional software, USB and dongle.

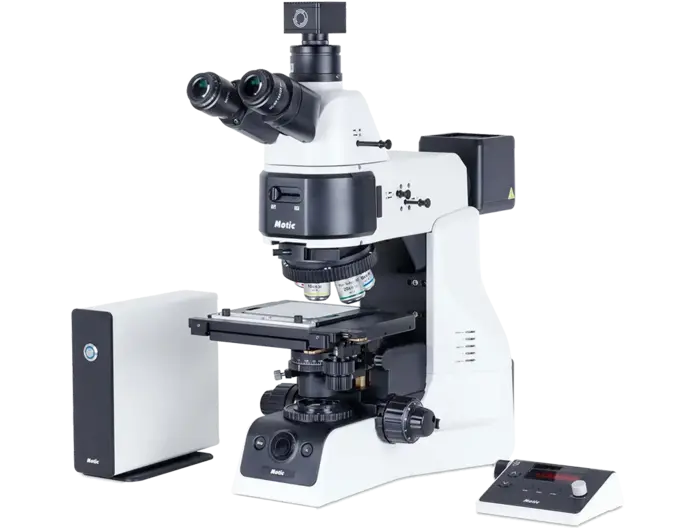

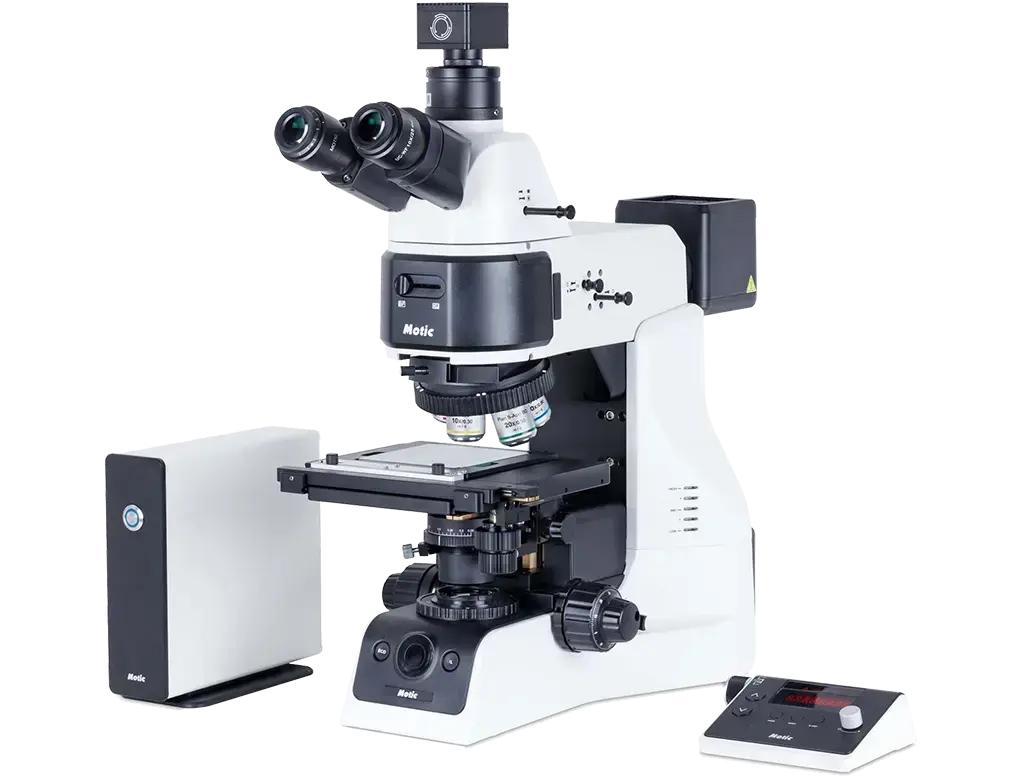

Reflected and Transmitted stand with motorized Z-axis, BrightField and DarkField (BD) observation.
