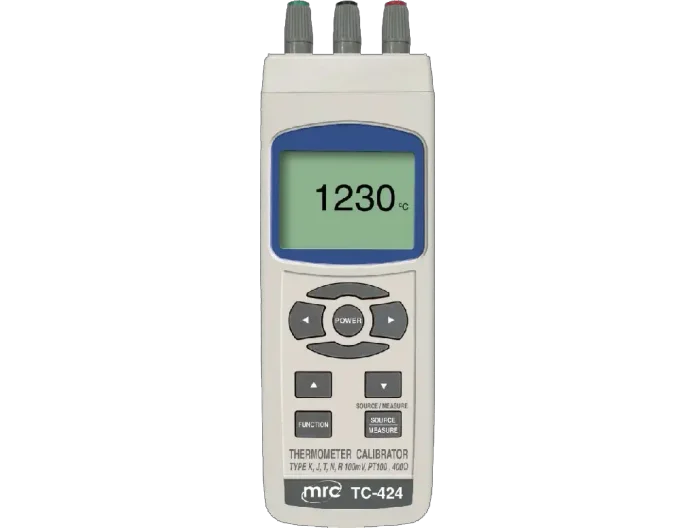

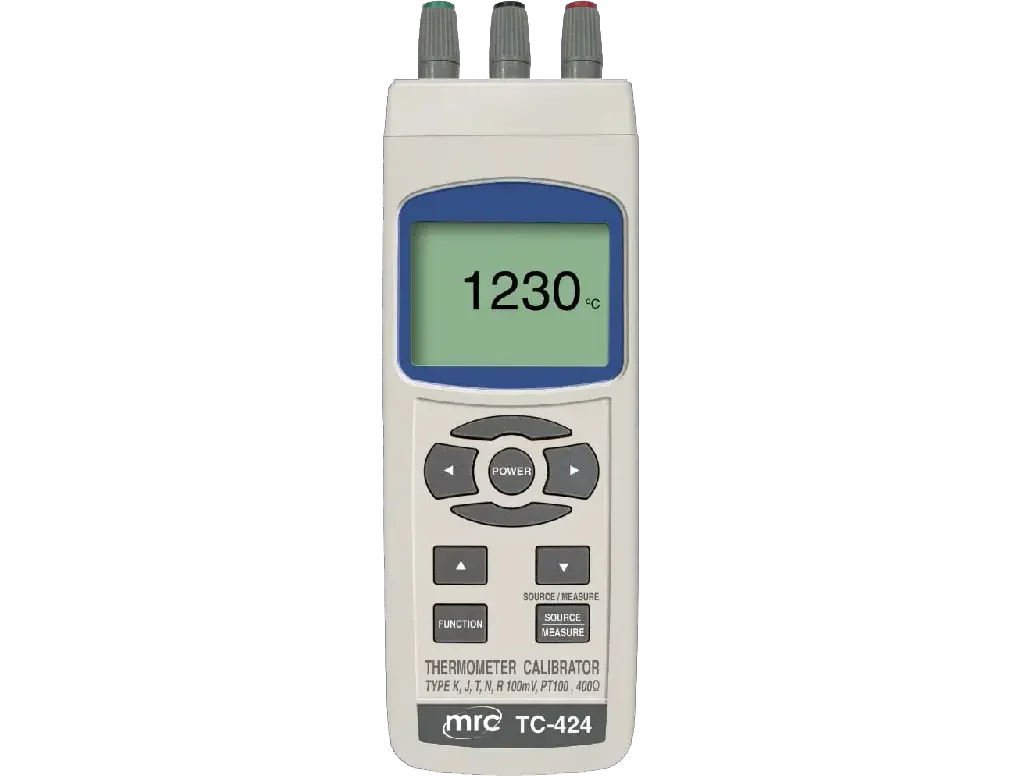

    THERMOMETER CALIBRATOR

    THERMOMETER CALIBRATOR 3

    THERMOMETER CALIBRATOR 3

    THERMOMETER CALIBRATOR
    Model : TC-424
    * Function :
    1. Thermocouple calibrator ( source ).
    2. Thermocouple thermometer.
    3. Pt100 calibrator ( source )
    4. Pt100 thermometer ( measurement ).
    5. 400 ohm resistance calibrator ( source )
    6. 400 ohm resistance measurement.
    7. DC mV calibrator ( source ).
    8. DC mV measurement.
    * Type K/J/T/R/E/S thermocouple
    * Pt 100 : 0 to 850.0 oC
    * Resistance: 0 to 400.0 ohm.
    * DC mV : -10.00 mV to +110.00 mV.
    * Temp. unit : oC/oF.
    * Power: 1.5V (UM-3/AA)battery x 6 PCs or
    DC 9V adapter in.
    * Optional type K Temp. probes :
    TP-01, TP-02A , TP-03, TP-04, TP-05.
    READ MORE >
      CATALOG NUMBER: TC-424
      $0
      • TECHNICAL DATA
      • FUNCTIONS
      • DESCRIPTION
      • ACCESSORIES
      • VIDEOS
      • DOCUMENTATION
      • DOWNLOAD
      • REQUEST A QUOTE
      THERMOMETER CALIBRATOR
      Model : TC-424
      * Function :
      1. Thermocouple calibrator ( source ).
      2. Thermocouple thermometer.
      3. Pt100 calibrator ( source )
      4. Pt100 thermometer ( measurement ).
      5. 400 ohm resistance calibrator ( source )
      6. 400 ohm resistance measurement.
      7. DC mV calibrator ( source ).
      8. DC mV measurement.
      * Type K/J/T/R/E/S thermocouple
      * Pt 100 : 0 to 850.0 oC
      * Resistance: 0 to 400.0 ohm.
      * DC mV : -10.00 mV to +110.00 mV.
      * Temp. unit : oC/oF.
      * Power: 1.5V (UM-3/AA)battery x 6 PCs or
      DC 9V adapter in.
      * Optional type K Temp. probes :
      TP-01, TP-02A , TP-03, TP-04, TP-05.

      Specifications



      TECHNICAL DATA

        Specifications
        TC-424_SPEC.pdf

      FUNCTIONS

      DESCRIPTION

      THERMOMETER CALIBRATOR
      Model : TC-424
      * Function :
      1. Thermocouple calibrator ( source ).
      2. Thermocouple thermometer.
      3. Pt100 calibrator ( source )
      4. Pt100 thermometer ( measurement ).
      5. 400 ohm resistance calibrator ( source )
      6. 400 ohm resistance measurement.
      7. DC mV calibrator ( source ).
      8. DC mV measurement.
      * Type K/J/T/R/E/S thermocouple
      * Pt 100 : 0 to 850.0 oC
      * Resistance: 0 to 400.0 ohm.
      * DC mV : -10.00 mV to +110.00 mV.
      * Temp. unit : oC/oF.
      * Power: 1.5V (UM-3/AA)battery x 6 PCs or
      DC 9V adapter in.
      * Optional type K Temp. probes :
      TP-01, TP-02A , TP-03, TP-04, TP-05.

      ACCESSORIES

      VIDEOS

      DOCUMENTATION

      Specifications



      DOWNLOAD

      REQUEST A QUOTE

      How To Use A Thermometer Calibrator

      Manual's Film

      Manual's Film

      Operation Manual
