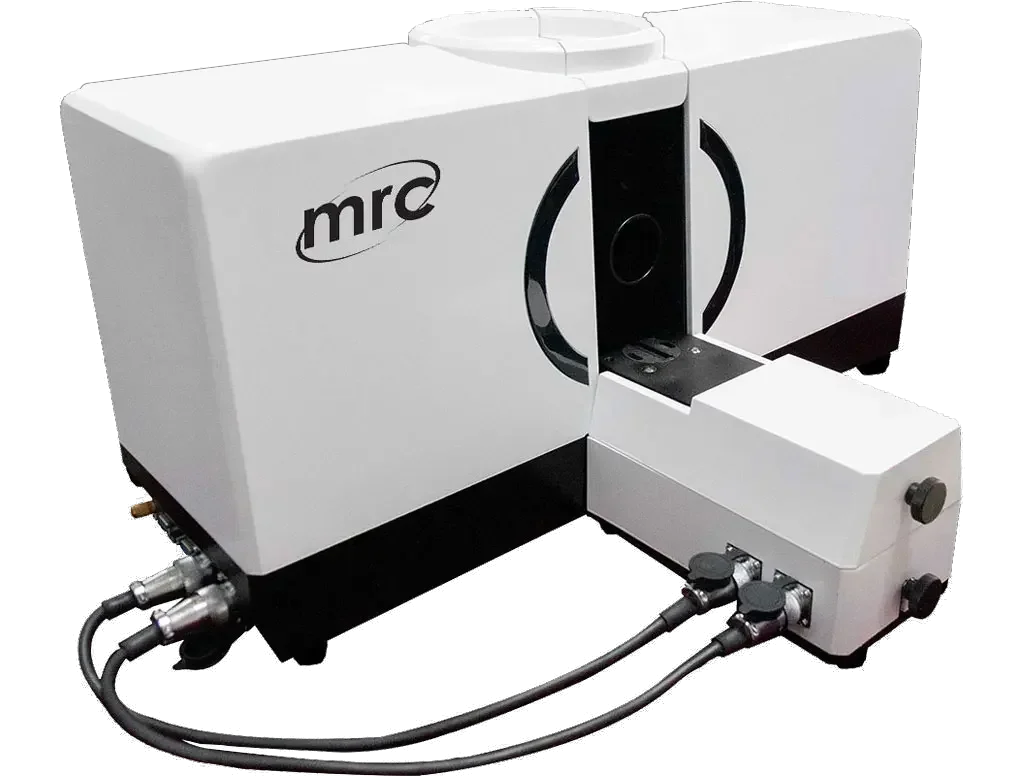

Spray Particle Size Analyzer 0.1-100 µm

Spray Particle Size Analyzer 0.1-100 µm

Spray Particle Size Analyzer 0.1-100 µm

Execute StandardISO13320:2009, GB/T19077-2016, Q/0100JWN001-2020
Size Range0.1-100μm
Detector channels80 pcs
Accuracy error<1% (CRM D50)
Repeatability error<1% (CRM D50)
Light sourceSemiconductor red laser λ= 650nm p>1mw
Feedingopen
Measurement area length60mm
Automatic mobile platformSOP control the spraying point, One-click arrival and one-click return.
DimensionL720W620H370mm
N.W.30 KG

CATALOG NUMBER: PA-311PRO

Execute StandardISO13320:2009, GB/T19077-2016, Q/0100JWN001-2020
Size Range0.1-100μm
Detector channels80 pcs
Accuracy error<1% (CRM D50)
Repeatability error<1% (CRM D50)
Light sourceSemiconductor red laser λ= 650nm p>1mw
Feedingopen
Measurement area length60mm
Automatic mobile platformSOP control the spraying point, One-click arrival and one-click return.
DimensionL720W620H370mm
N.W.30 KG

TECHNICAL DATA

FUNCTIONS

DESCRIPTION

Execute StandardISO13320:2009, GB/T19077-2016, Q/0100JWN001-2020
Size Range0.1-100μm
Detector channels80 pcs
Accuracy error<1% (CRM D50)
Repeatability error<1% (CRM D50)
Light sourceSemiconductor red laser λ= 650nm p>1mw
Feedingopen
Measurement area length60mm
Automatic mobile platformSOP control the spraying point, One-click arrival and one-click return.
DimensionL720W620H370mm
N.W.30 KG

ACCESSORIES

VIDEOS

DOCUMENTATION

DOWNLOAD

REQUEST A QUOTE

Specifications

Specifications Version 2

Operation Manual
