ApplicationsVacuum Filtration, SPE, Rotary Evaporations (volatile solvents <80oC B.P., volume <2 liters), pumping harsh vapors & gases, general laboratory vacuum

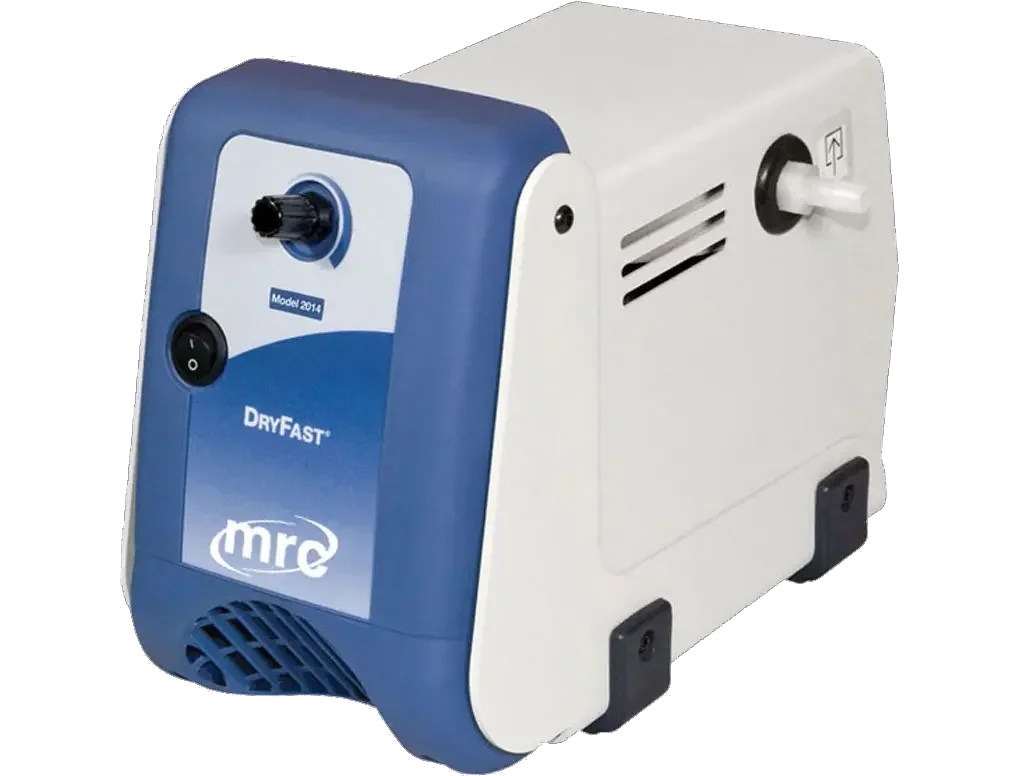

TypeLaboratory Vacuum Pump
Free Air Displacement cfm (l/min.) @60Hz1.2(35)
Free Air Displacement m3/hr (l/min.) @50Hz1.75(29)
Ultimate Pressure40(53)
Maximum Vacuum28.3
Motor Horsepower (watts)1/5(150)
Adjustable Vac. / Gas BallastYes
Tubing Needed1/4(7)
Intake Thread NPTM14(1/8)
Overall Dimensions LxWxH in. (cm)12x7.0x8.3 (30.5x 17.8x21.1)
Ship Weight19(8.6)
Shipping Carton Dimensions LxWxH in. (cm)21x14x15 (52x35x37)
Adjustable VacuumKnob
