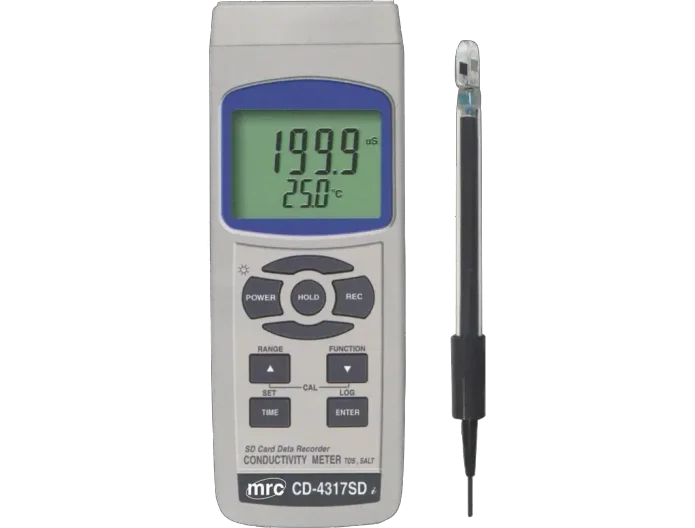

    pt glass electrode CONDUCTIVITY,TDS,Salt,temp+DataLogger

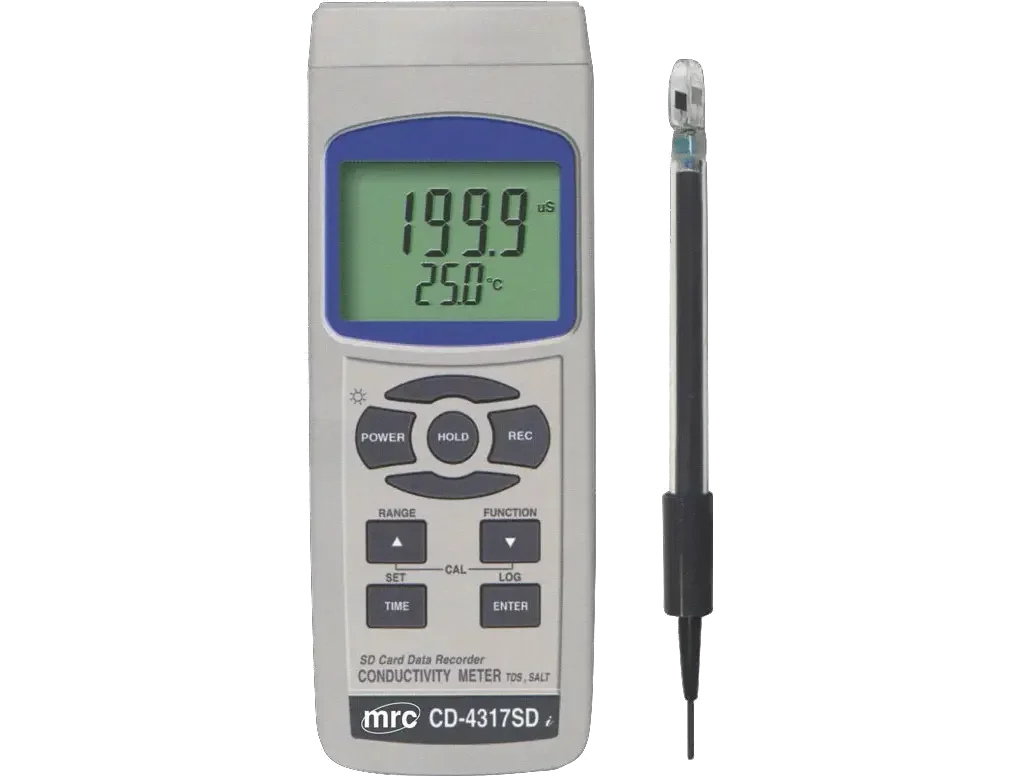

    pt glass electrode CONDUCTIVITY, TDS, Salt Meter+DataLogger 3

    pt glass electrode CONDUCTIVITY, TDS, Salt Meter+DataLogger 3

    pt glass electrode CONDUCTIVITY,TDS,Salt,temp+DataLogger
    Pt glss electrode, high performance for the low
    conductivity ( pure water ) measurement.
    Conductivity : 200 uS/2 mS/20 mS/200 mS.
    Salt : 0 to 12 % salt ( % weight ).
    Conductivity measurement can select Temp. Coefficient
    of measurement solution.
    ATC for the conductivity measurement.
    Separate probe, easy for operation of different
    measurement environment.
    Real time SD memory card Datalogger, built-in Clock
    and Calendar, sampling time can set from 1 sec to 8
    hour 59 min. 59 sec.
    SD card capacity : 1 GB to 16 GB
    Microcomputer circuit, high accuracy.
    Power by UM3/AA ( 1.5 V ) x 6 batteries or DC 9V adapter.
    RS232/USB PC COMPUTER interface
    READ MORE >
      CATALOG NUMBER: CD-4317SD
      $0
      • TECHNICAL DATA
      • FUNCTIONS
      • DESCRIPTION
      • ACCESSORIES
      • VIDEOS
      • DOCUMENTATION
      • DOWNLOAD
      • REQUEST A QUOTE
      Type
      Portable
      Parameters
      Conductivity,TDS,Salt,Temperature
      Conductivity Ranges (S/cm)
      200uS, 2mS, 20mS, 200mS
      Data Logging ?
      Yes
      Communication Port ?
      Yes
      pt glass electrode CONDUCTIVITY,TDS,Salt,temp+DataLogger
      Pt glss electrode, high performance for the low
      conductivity ( pure water ) measurement.
      Conductivity : 200 uS/2 mS/20 mS/200 mS.
      Salt : 0 to 12 % salt ( % weight ).
      Conductivity measurement can select Temp. Coefficient
      of measurement solution.
      ATC for the conductivity measurement.
      Separate probe, easy for operation of different
      measurement environment.
      Real time SD memory card Datalogger, built-in Clock
      and Calendar, sampling time can set from 1 sec to 8
      hour 59 min. 59 sec.
      SD card capacity : 1 GB to 16 GB
      Microcomputer circuit, high accuracy.
      Power by UM3/AA ( 1.5 V ) x 6 batteries or DC 9V adapter.
      RS232/USB PC COMPUTER interface

      Specifications



      TECHNICAL DATA

        Type
        Portable
        Parameters
        Conductivity,TDS,Salt,Temperature
        Conductivity Ranges (S/cm)
        200uS, 2mS, 20mS, 200mS
        Data Logging ?
        Yes
        Communication Port ?
        Yes
        Specifications
        CD-4317SD_SPEC.pdf

      FUNCTIONS

      DESCRIPTION

      pt glass electrode CONDUCTIVITY,TDS,Salt,temp+DataLogger
      Pt glss electrode, high performance for the low
      conductivity ( pure water ) measurement.
      Conductivity : 200 uS/2 mS/20 mS/200 mS.
      Salt : 0 to 12 % salt ( % weight ).
      Conductivity measurement can select Temp. Coefficient
      of measurement solution.
      ATC for the conductivity measurement.
      Separate probe, easy for operation of different
      measurement environment.
      Real time SD memory card Datalogger, built-in Clock
      and Calendar, sampling time can set from 1 sec to 8
      hour 59 min. 59 sec.
      SD card capacity : 1 GB to 16 GB
      Microcomputer circuit, high accuracy.
      Power by UM3/AA ( 1.5 V ) x 6 batteries or DC 9V adapter.
      RS232/USB PC COMPUTER interface

      ACCESSORIES

      VIDEOS

      DOCUMENTATION

      Specifications



      DOWNLOAD

      REQUEST A QUOTE

      4GB MEMORY CARD 3
      SD-2GD

      4GB MEMORY CARD

      DC 9V ADAPTOR
      AP-9VA

      DC 9V ADAPTOR

      EXTENSION CABLE 5 meters for probe
      EXCB-05

      EXTENSION CABLE 5 meters for probe

      Water resistant bag for measurment device 285X167 mm
      WP-11

      Water resistant bag for measurment device 185X167 mm

      SW-E816

      DATA ACQUISITION SOFTWARE

      Excel Data Acquisition Software - for Win.10
      SW-E802

      Excel Data Acquisition Software - for Win.10

      USB CABLE
      USB-01

      USB CABLE

      CONDUCTIVITY STANDARD 1 BOTTLES
      EC-84-P

      Conductivity Standard 2 Bottles -- 1 Pint Each

      CONDUCTIVITY STANDARD 1 BOTTLES
      EC-1413-P

      Conductivity Standard 2 Bottles -- 1 Pint Each

      CONDUCTIVITY STANDARD 1 BOTTLE -- 1 PINT EACH
      EC-12880-P

      Conductivity Standard 2 Bottles -- 1 Pint Each
