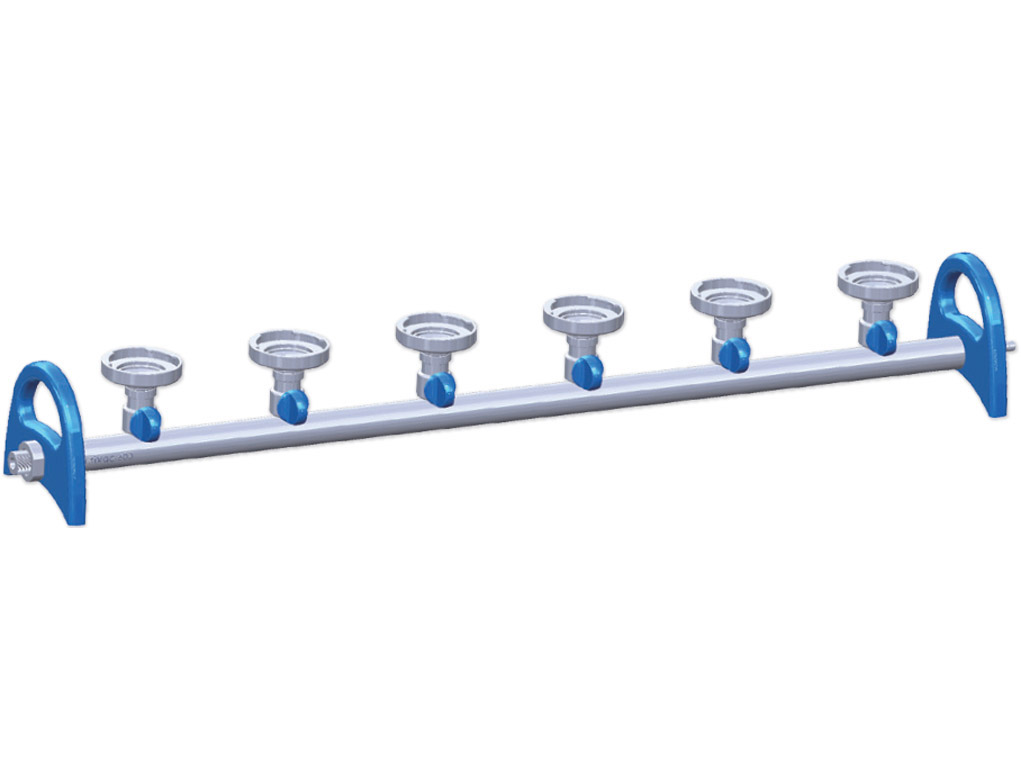

6 places stainless steel manifold (without funnel)
◆ The whole set is made of SUS316
◆ The patented spin-lock design
◆ Adjustable vent valve design
◆ Individual control valve
◆ Compatible to different sizes of funnels
◆ Number of branch： 6
◆ Filter diameter： 47mm / 50mm
◆ Funnel capacity： 100/300/500ml
◆ Effective filtration area ： 9.6 cm²
◆ Port thread (I.D. tubing)： 5/16 inch
◆ Dimension (LxWxH)：68.5x12.9x12.5cm
Applications :
◆ Filtration for microbiology test
◆ Chemical experiment
◆ General laboratory filtration
