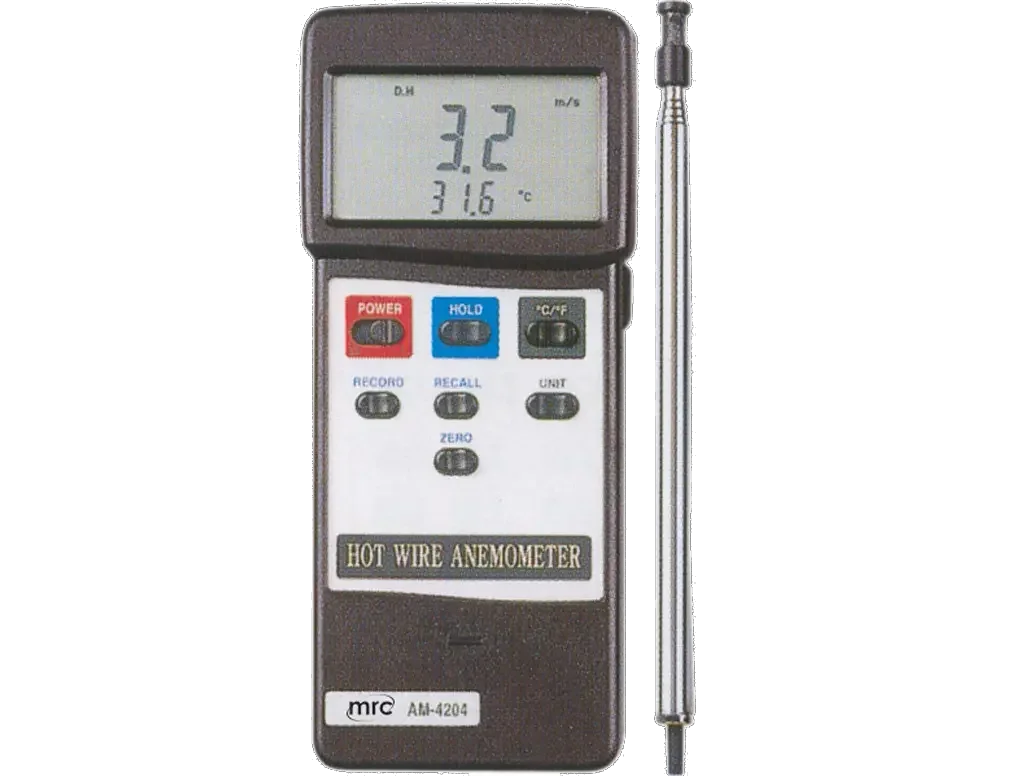

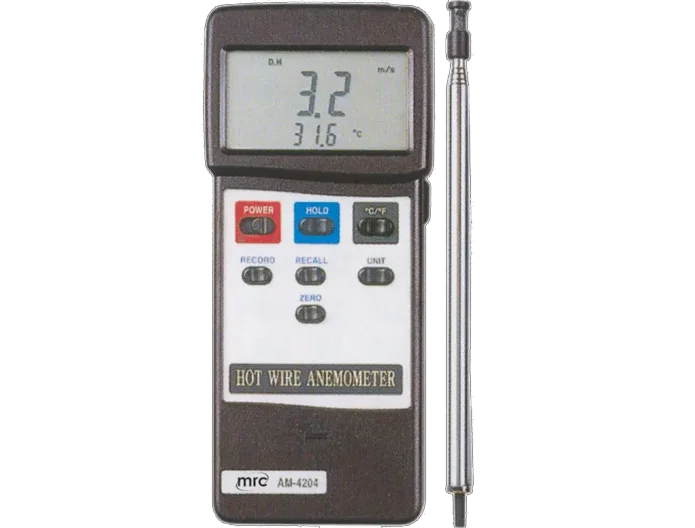

    Hot Wire Anemometer

    Hot Wire Anemometer

    Hot Wire Anemometer

    Hot Wire Anemometer,
    0.2 - 20.0 m/s, High precision for low air velocity measurement,
    Telescope probe
    m/s, ft/min, km/h, knots, mile/h,°C/°F
    Max., Min., Data hold, RS-232
    m/s 0.2 - 20.0 m/s 0.1 m/s
    km/h 0.7 - 72.0 km/h 0.1 km/h
    ft/min 40 - 3940 ft/min 1 ft/min
    mile/h 0.5 - 44.7 mile/h 0.1 mile/h
    knots 0.4 - 38.8 knots 0.1 knots
    Accuracy:± ( 5 % + 1 d ) reading
    Temperature ( ) ℃ 0 to 50 ℃ ℃ 0.1 ℃ accuracy ± 0.8 ℃
    * RS 232 PC serial interface.
    * Thermistor sensor for Temperature
    measurement, fast response time.
    * Applications : Environmental testing,
    Air conveyors, Flow hoods, Clean
    rooms, Air velocity, Air balancing,
    Fans/motors/blowers, Furnace
    READ MORE >
      CATALOG NUMBER: AM-4204
      $0
      • TECHNICAL DATA
      • FUNCTIONS
      • DESCRIPTION
      • ACCESSORIES
      • VIDEOS
      • DOCUMENTATION
      • DOWNLOAD
      • REQUEST A QUOTE
      Type
      Hot Wire Anemometer
      Parameters
      Air velocity
      Air Velocity/Flow Range
      0.2 to 20.0 m/s
      Data Logging ?
      No
      Communication Port ?
      Yes
      Hot Wire Anemometer,
      0.2 - 20.0 m/s, High precision for low air velocity measurement,
      Telescope probe
      m/s, ft/min, km/h, knots, mile/h,°C/°F
      Max., Min., Data hold, RS-232
      m/s 0.2 - 20.0 m/s 0.1 m/s
      km/h 0.7 - 72.0 km/h 0.1 km/h
      ft/min 40 - 3940 ft/min 1 ft/min
      mile/h 0.5 - 44.7 mile/h 0.1 mile/h
      knots 0.4 - 38.8 knots 0.1 knots
      Accuracy:± ( 5 % + 1 d ) reading
      Temperature ( ) ℃ 0 to 50 ℃ ℃ 0.1 ℃ accuracy ± 0.8 ℃
      * RS 232 PC serial interface.
      * Thermistor sensor for Temperature
      measurement, fast response time.
      * Applications : Environmental testing,
      Air conveyors, Flow hoods, Clean
      rooms, Air velocity, Air balancing,
      Fans/motors/blowers, Furnace

      Specifications



      TECHNICAL DATA

        Type
        Hot Wire Anemometer
        Parameters
        Air velocity
        Air Velocity/Flow Range
        0.2 to 20.0 m/s
        Data Logging ?
        No
        Communication Port ?
        Yes
        Specifications
        AM-4204_SPEC.pdf

      FUNCTIONS

      DESCRIPTION

      Hot Wire Anemometer,
      0.2 - 20.0 m/s, High precision for low air velocity measurement,
      Telescope probe
      m/s, ft/min, km/h, knots, mile/h,°C/°F
      Max., Min., Data hold, RS-232
      m/s 0.2 - 20.0 m/s 0.1 m/s
      km/h 0.7 - 72.0 km/h 0.1 km/h
      ft/min 40 - 3940 ft/min 1 ft/min
      mile/h 0.5 - 44.7 mile/h 0.1 mile/h
      knots 0.4 - 38.8 knots 0.1 knots
      Accuracy:± ( 5 % + 1 d ) reading
      Temperature ( ) ℃ 0 to 50 ℃ ℃ 0.1 ℃ accuracy ± 0.8 ℃
      * RS 232 PC serial interface.
      * Thermistor sensor for Temperature
      measurement, fast response time.
      * Applications : Environmental testing,
      Air conveyors, Flow hoods, Clean
      rooms, Air velocity, Air balancing,
      Fans/motors/blowers, Furnace

      ACCESSORIES

      VIDEOS

      DOCUMENTATION

      Specifications



      DOWNLOAD

      REQUEST A QUOTE

      EXTENSION CABLE 5 meters for probe
      EXCB-05

      Extension cable 5 meters for probe

      Water resistant bag for measurment device 285X167 mm
      WP-11

      Water resistant bag for measurment device 185X167 mm

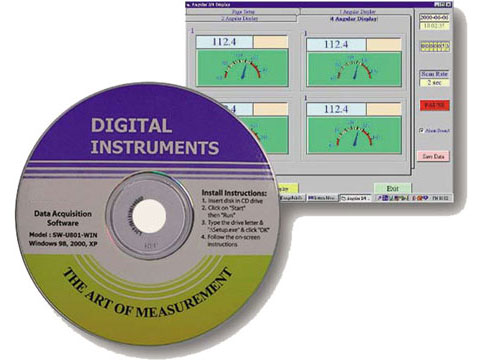

      DATA ACQUISITION SOFTWARE
      SW-U801-WIN

      Data Acquisition Software : SW-E816

      Excel Data Acquisition Software - for Win.10
      SW-E802

      Excel Data Acquisition Software - for Win.10

      USB CABLE
      USB-01

      USB communication Cable

      RS232 CABLE
      UPCB-01

      RS232 CABLE

      Operation Manual
