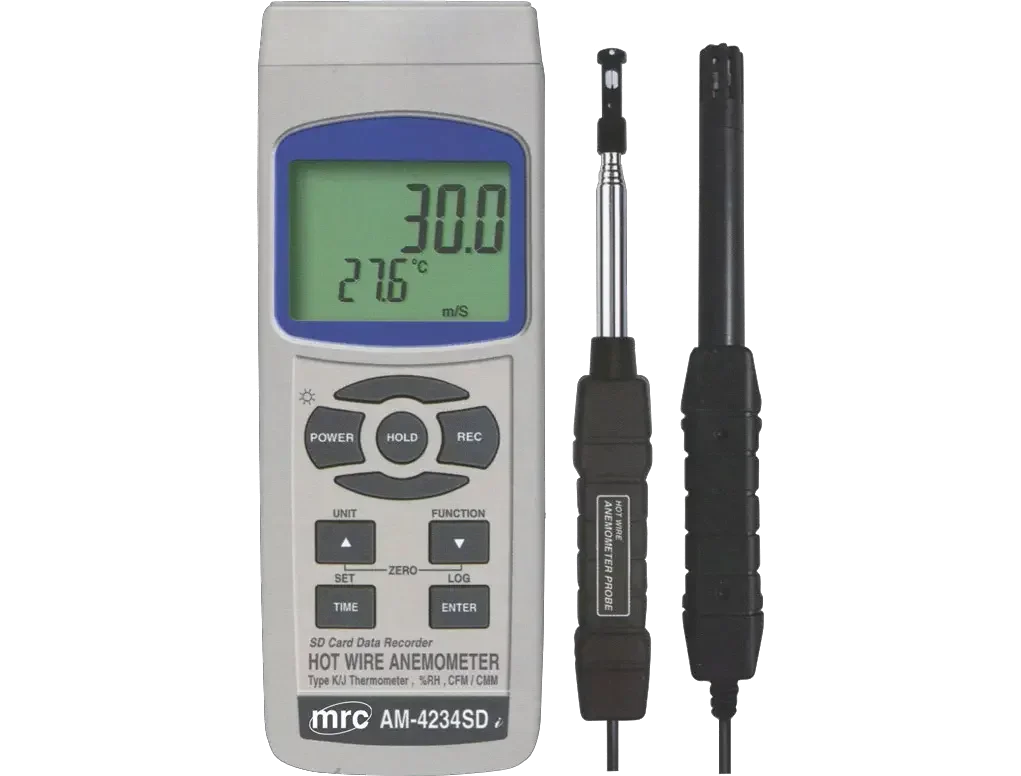

Hot wire Air Flow meter+ Humidty+ Dew point+DataLogger

Hot wire ANEMOMETER, wide range+type K/J temp. Air Flow, Humid., Dew point+DataLogger

Hot wire ANEMOMETER, wide range+type K/J temp. Air Flow, Humid., Dew point+DataLogger

Air velocity: 0.2-5.0 m/s / 5.1-35.0 m/s
Resolution: 0.01m/s / 0.1 m/s
Air temperature: 0-50 deg.C
Air flow: 0-45,000 CMM
0-1,589,200 CFM
Humidity: 5%-95% resolution 0.1% RH
DEW POINT: -25.3.....48.9 DEG.c
Data logger sampling time: 1-3600s
Memory card SD 1-16 GB
Automatic T compensation for the K/J thermometer
RS232 Data output

CATALOG NUMBER: AM-4234SD

Type

Hot wire anemometer, Logger

Parameters

Wet bulb, Dew Point, Air temp & Hum, Air flow, Air velocity

Air Velocity/Flow Range

0.2 to 35.0 m/s

Data Logging ?

Yes

Communication Port ?

Yes

Air velocity: 0.2-5.0 m/s / 5.1-35.0 m/s
Resolution: 0.01m/s / 0.1 m/s
Air temperature: 0-50 deg.C
Air flow: 0-45,000 CMM
0-1,589,200 CFM
Humidity: 5%-95% resolution 0.1% RH
DEW POINT: -25.3.....48.9 DEG.c
Data logger sampling time: 1-3600s
Memory card SD 1-16 GB
Automatic T compensation for the K/J thermometer
RS232 Data output

Specifications

TECHNICAL DATA

Type

Hot wire anemometer, Logger

Parameters

Wet bulb, Dew Point, Air temp & Hum, Air flow, Air velocity

Air Velocity/Flow Range

0.2 to 35.0 m/s

Data Logging ?

Yes

Communication Port ?

Yes

Specifications

AM-4234SD_SPEC.pdf

FUNCTIONS

DESCRIPTION

Air velocity: 0.2-5.0 m/s / 5.1-35.0 m/s
Resolution: 0.01m/s / 0.1 m/s
Air temperature: 0-50 deg.C
Air flow: 0-45,000 CMM
0-1,589,200 CFM
Humidity: 5%-95% resolution 0.1% RH
DEW POINT: -25.3.....48.9 DEG.c
Data logger sampling time: 1-3600s
Memory card SD 1-16 GB
Automatic T compensation for the K/J thermometer
RS232 Data output

ACCESSORIES

VIDEOS

DOCUMENTATION

Specifications

DOWNLOAD

REQUEST A QUOTE

4GB MEMORY CARD 3

4GB MEMORY CARD

DC 9V Adaptor

EXTENSION CABLE 5 meters for probe

Extension cable 5 meters for probe

Water resistant bag for measurment device 285X167 mm

Water resistant bag for measurment device 185X167 mm

DATA ACQUISITION SOFTWARE

Excel Data Acquisition Software - for Win.10

Excel Data Acquisition Software - for Win.10

USB communication Cable

Operation Manual

Operation Manual
