    Flow Rate Peristaltic Pump 0.01 to 380ml for min

    Flow Rate Peristaltic Pump 0.01 to 380ml for min 3

    Flow Rate Peristaltic Pump 0.01 to 380ml for min 3

    The pump delivers flow rates
    from 0.005 to 380 mL/min. It has flow rates
    display and flow rates calibration functions.
    It also has functions of speed adjustment,
    start/stop, cw/ccw, prime (rinsing), tubing
    selection, RS485 communication,
    Speed 1.0 to 100.0 rpm, reversible
    Speed resolution 0.1rpm
    Speed Control Rotary encoded switch coupled
    with membrane keypad
    Display 128x32 graphic LCD displays
    current running status
    External control
    Start/stop & cw/ccw control,
    o to 5V, 0 to 10V, 4
    Communication interface RS485
    Power supply AC 90 - 260V 50Hz/60Hz
    Power consumption 50W
    Operating condition Temperature 0 to 40°C
    Relative humidity < 80%
    Dimensions (LxWxH) 190x162x275 (mm)
    Drive weight 3.5kg
    IP rating IP 31
    READ MORE >
      CATALOG NUMBER: PP-F-380
      $0
      • TECHNICAL DATA
      • FUNCTIONS
      • DESCRIPTION
      • ACCESSORIES
      • VIDEOS
      • DOCUMENTATION
      • DOWNLOAD
      • REQUEST A QUOTE
      Type
      Flow Rate
      Max. Flow (ml/min)
      380
      Min. Flow (ml/min)
      0.005
      Max. Speed (rpm)
      100
      The pump delivers flow rates
      from 0.005 to 380 mL/min. It has flow rates
      display and flow rates calibration functions.
      It also has functions of speed adjustment,
      start/stop, cw/ccw, prime (rinsing), tubing
      selection, RS485 communication,
      Speed 1.0 to 100.0 rpm, reversible
      Speed resolution 0.1rpm
      Speed Control Rotary encoded switch coupled
      with membrane keypad
      Display 128x32 graphic LCD displays
      current running status
      External control
      Start/stop & cw/ccw control,
      o to 5V, 0 to 10V, 4
      Communication interface RS485
      Power supply AC 90 - 260V 50Hz/60Hz
      Power consumption 50W
      Operating condition Temperature 0 to 40°C
      Relative humidity < 80%
      Dimensions (LxWxH) 190x162x275 (mm)
      Drive weight 3.5kg
      IP rating IP 31

      Specifications



      Operation Manual



      CE



      TECHNICAL DATA

        Type
        Flow Rate
        Max. Flow (ml/min)
        380
        Min. Flow (ml/min)
        0.005
        Max. Speed (rpm)
        100
        Specifications
        PP-F-380_SPEC.pdf
        Operation Manual
        PP-F-380_OPR.pdf
        CE
        PP-F-380_CE.pdf

      FUNCTIONS

      DESCRIPTION

      The pump delivers flow rates
      from 0.005 to 380 mL/min. It has flow rates
      display and flow rates calibration functions.
      It also has functions of speed adjustment,
      start/stop, cw/ccw, prime (rinsing), tubing
      selection, RS485 communication,
      Speed 1.0 to 100.0 rpm, reversible
      Speed resolution 0.1rpm
      Speed Control Rotary encoded switch coupled
      with membrane keypad
      Display 128x32 graphic LCD displays
      current running status
      External control
      Start/stop & cw/ccw control,
      o to 5V, 0 to 10V, 4
      Communication interface RS485
      Power supply AC 90 - 260V 50Hz/60Hz
      Power consumption 50W
      Operating condition Temperature 0 to 40°C
      Relative humidity < 80%
      Dimensions (LxWxH) 190x162x275 (mm)
      Drive weight 3.5kg
      IP rating IP 31

      ACCESSORIES

      VIDEOS

      DOCUMENTATION

      Specifications



      Operation Manual



      CE



      DOWNLOAD

      REQUEST A QUOTE

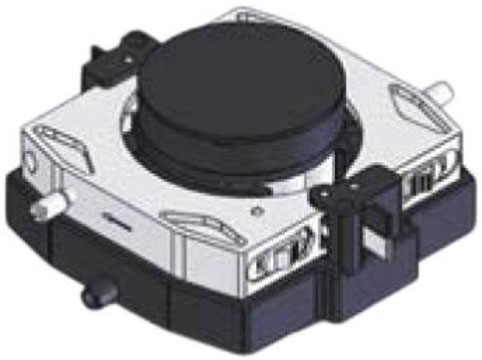

      Pump head, 2 channels, 1-380 ml/min
      LEAD15-24

      Pump head, 2 channels, 1-380 ml/min

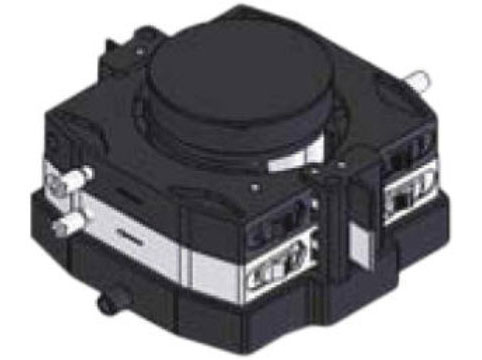

      Peristaltic Pump head 4ch 8 weels 380ml/min
      LEAD15-44

      Peristaltic Pump head 4ch 8 weels 380ml/min

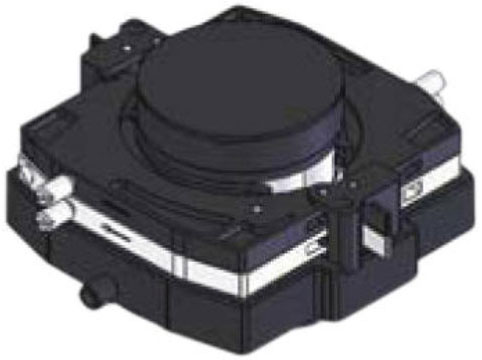

      Peristaltic Pump Head 4 channels 8 wheels up to 80 ml ​​/ minute
      LEAD15-48

      Peristaltic Pump Head 4 channels 8 wheels up to 80 ml ​​/ minute

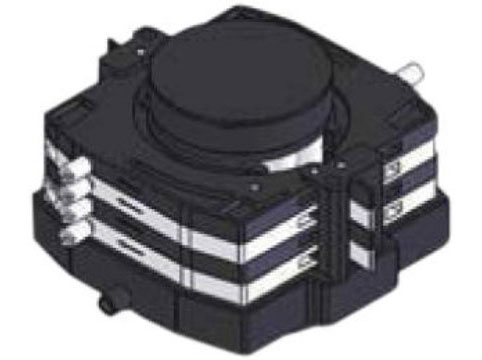

      Peristaltic Pump
      LEAD15-88

      Peristaltic Pump
