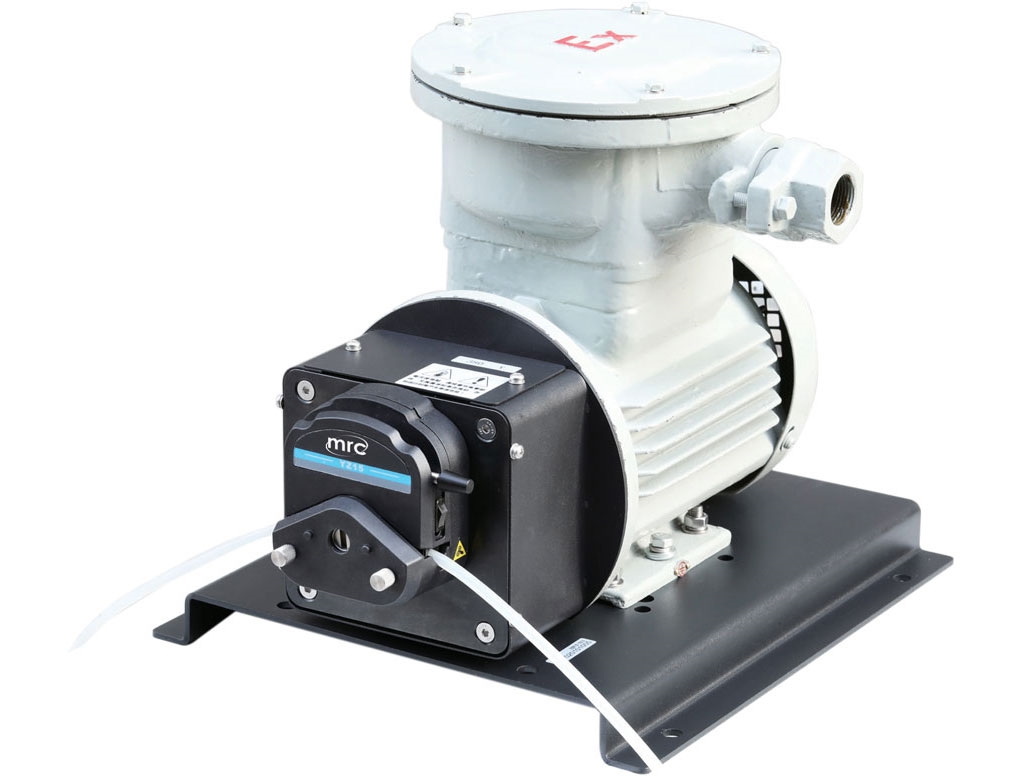

    Explosion Proof Peristaltic Pump up to 6000ml/min

    EXPLOSION PROOF PERISTALTIC PUMP UP TO 6000ML/MIN

    EXPLOSION PROOF PERISTALTIC PUMP UP TO 6000ML/MIN

    AC Explosion-proof Motor Peristaltic Pump (380V)
    •Flow range :4~6000ml/min
    •Speed range: 70-600rpm
    •Optional Pump head: YZ15, YZ25, YT15, YT25, KZ25, KZ25-L
    •Adjust speed: Stepless speed (standard frequency converter motor without connection cable)
    • Speed resolution: 0.1HZ(The corresponding rotational speed is 2rpm)
    • Control function: Start/stop,Positive and negative, adjust speed, communication etc functions.
    •Power supply: Three phase 380 v
    •Power consumption: 0.55KW
    •Working environment: Temperature 0℃-40℃,relative humidity<80%
    •Anti-explosion Grade: ExdIIBT4
    •IP Grade: IP55 (only drive)
    •Casing Dimensions: (LxWxH)449*350*332
    •Weight: 37Kg
    READ MORE >
      CATALOG NUMBER: PP-EX-600S-A3
      $0
      • TECHNICAL DATA
      • FUNCTIONS
      • DESCRIPTION
      • ACCESSORIES
      • VIDEOS
      • DOCUMENTATION
      • DOWNLOAD
      • REQUEST A QUOTE
      Max. Flow (ml/min)
      6000
      Min. Flow (ml/min)
      4
      Max. Speed (rpm)
      600
      AC Explosion-proof Motor Peristaltic Pump (380V)
      •Flow range :4~6000ml/min
      •Speed range: 70-600rpm
      •Optional Pump head: YZ15, YZ25, YT15, YT25, KZ25, KZ25-L
      •Adjust speed: Stepless speed (standard frequency converter motor without connection cable)
      • Speed resolution: 0.1HZ(The corresponding rotational speed is 2rpm)
      • Control function: Start/stop,Positive and negative, adjust speed, communication etc functions.
      •Power supply: Three phase 380 v
      •Power consumption: 0.55KW
      •Working environment: Temperature 0℃-40℃,relative humidity<80%
      •Anti-explosion Grade: ExdIIBT4
      •IP Grade: IP55 (only drive)
      •Casing Dimensions: (LxWxH)449*350*332
      •Weight: 37Kg

      TECHNICAL DATA

        Max. Flow (ml/min)
        6000
        Min. Flow (ml/min)
        4
        Max. Speed (rpm)
        600

      FUNCTIONS

      DESCRIPTION

      AC Explosion-proof Motor Peristaltic Pump (380V)
      •Flow range :4~6000ml/min
      •Speed range: 70-600rpm
      •Optional Pump head: YZ15, YZ25, YT15, YT25, KZ25, KZ25-L
      •Adjust speed: Stepless speed (standard frequency converter motor without connection cable)
      • Speed resolution: 0.1HZ(The corresponding rotational speed is 2rpm)
      • Control function: Start/stop,Positive and negative, adjust speed, communication etc functions.
      •Power supply: Three phase 380 v
      •Power consumption: 0.55KW
      •Working environment: Temperature 0℃-40℃,relative humidity<80%
      •Anti-explosion Grade: ExdIIBT4
      •IP Grade: IP55 (only drive)
      •Casing Dimensions: (LxWxH)449*350*332
      •Weight: 37Kg
