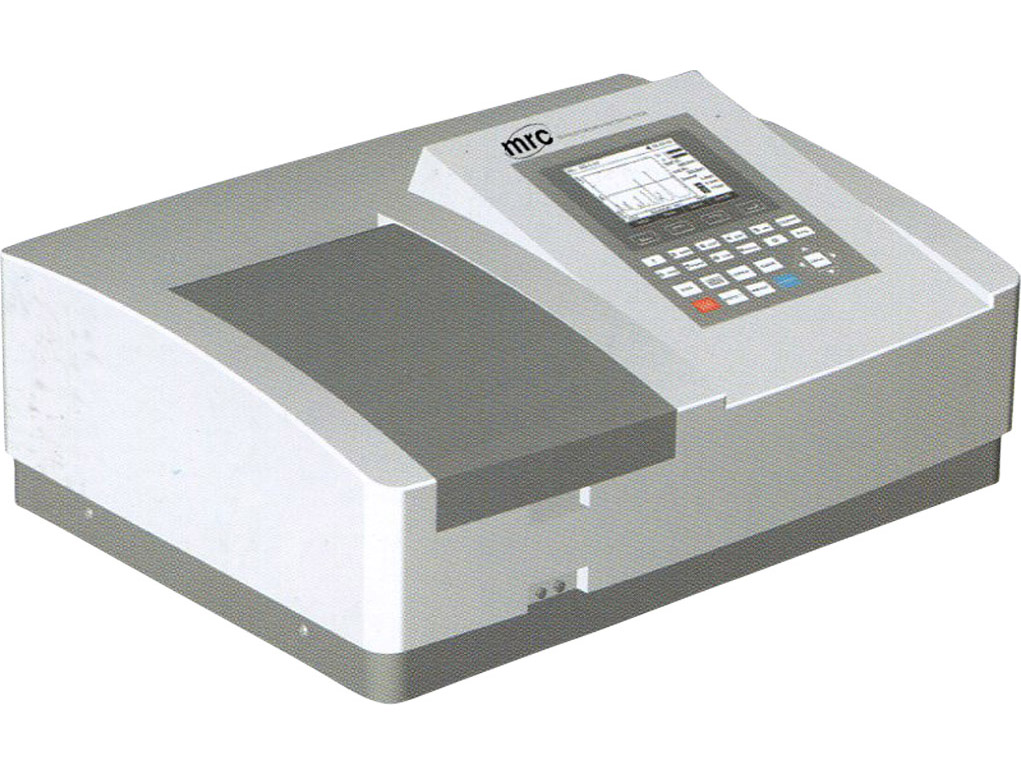

Double Beam Scanning Spectrophotometer

Double Beam Scanning Spectrophotometer 3

Double Beam Scanning Spectrophotometer 3

●Spectral Bandwitch: 1nm
●Wavelength Accuracy: ±0.3nm
●Wavelength range : 190-1100nm
Scanning Speed Hi, Med, Low, Max, 3000nm/m in
lncluded:
● Single Cell Holder for 10mm SQU.Cuvt.
● 2pcs x 10mm Quartz Cuvette
●4pcs x 10mm Glass-Cuvette
● User Manual& Software Manual
●Output USB Port¶llel port (printer)
●Professional software provides complete control of the spectrophotometer from a Computer through the Built-in USB port.
●Professional software functions: Quantitative, Kinetics, Wavelength Scan, Multi-wavelength & DNA/Protein Test

READ MORE >

Type: Double Beam

CATALOG NUMBER: Spectro-UV63PC

WEIGHT(Kg) 28.50

L(m) 0.61

W(m) 0.73

H(m) 0.56

Type

Double Beam, UV/VIS, Scanning, Tungsten & Deuterium Lamp

Bandwidth (nm)

1

Wavelength Range (nm)

190-1100

●Spectral Bandwitch: 1nm
●Wavelength Accuracy: ±0.3nm
●Wavelength range : 190-1100nm
Scanning Speed Hi, Med, Low, Max, 3000nm/m in
lncluded:
● Single Cell Holder for 10mm SQU.Cuvt.
● 2pcs x 10mm Quartz Cuvette
●4pcs x 10mm Glass-Cuvette
● User Manual& Software Manual
●Output USB Port¶llel port (printer)
●Professional software provides complete control of the spectrophotometer from a Computer through the Built-in USB port.
●Professional software functions: Quantitative, Kinetics, Wavelength Scan, Multi-wavelength & DNA/Protein Test

Specifications

Operation Manual

CE

TECHNICAL DATA

Specifications

Spectro-UV63PC_SPEC.pdf

Operation Manual

Spectro-UV63PC_OPR.pdf

CE

Spectro-UV63PC_CE.pdf

Type

Double Beam, UV/VIS, Scanning, Tungsten & Deuterium Lamp

Bandwidth (nm)

1

Wavelength Range (nm)

190-1100

FUNCTIONS

DESCRIPTION

●Spectral Bandwitch: 1nm
●Wavelength Accuracy: ±0.3nm
●Wavelength range : 190-1100nm
Scanning Speed Hi, Med, Low, Max, 3000nm/m in
lncluded:
● Single Cell Holder for 10mm SQU.Cuvt.
● 2pcs x 10mm Quartz Cuvette
●4pcs x 10mm Glass-Cuvette
● User Manual& Software Manual
●Output USB Port¶llel port (printer)
●Professional software provides complete control of the spectrophotometer from a Computer through the Built-in USB port.
●Professional software functions: Quantitative, Kinetics, Wavelength Scan, Multi-wavelength & DNA/Protein Test

ACCESSORIES

VIDEOS

DOCUMENTATION

Specifications

Operation Manual

CE

DOWNLOAD

REQUEST A QUOTE

900540

CELL HOLDER, CYLINDRICAL CELL HOLDER,?22mm, A

900610

CELL HOLDER, 10MM WATER-JACKETED 1-CELL HOLDER(A), FOR UV/V16/18/3XXX

900210

MICRO CELL HOLDER

900310

AUTO CELL HOLDER, 8-POSITION AUTO CELL HOLDER (10mm)?used for UV16/18/3/6 Series
Old P/M 1-9, with series like XXX2305031,
there is no A at the last position of series no.

900530

TEST TUBE HOLDER, ?8-?22mm 60mm

900550

SOLID SAMPLE HOLDER(?1.5mm--3mm 1-POSITION)(A)

916101

CUVETTE, SQUARE CUVETTE GLASS 10mm (4/box)

916102

CUVETTE, SQUARE CUVETTE GLASS 20mm (2/box)

916103

CUVETTE, SQUARE CUVETTE GLASS 30mm (2/box)

916104

CUVETTE, SQUARE CUVETTE GLASS 50mm (2/box)

916105

CUVETTE, SQUARE CUVETTE GLASS 100mm (2/box)

916111

CUVETTE, SQUARE CUVETTE QUARTZ 10mm (2/box)

916112

CUVETTE, SQUARE CUVETTE QUARTZ 20mm (2/box)

916113

CUVETTE, SQUARE CUVETTE QUARTZ 30mm (2/box)

916114

CUVETTE, SQUARE CUVETTE QUARTZ 50mm (2/box)

916115

CUVETTE, SQUARE CUVETTE QUARTZ 100mm (2/box)

916121

100 UL MICROI CELL

916122

200 UL MICRO CELL

916123

CUVETTE, 500UL MICRO CELL QUARTZ (1/box)

916131

5mm Flow through glass cell

916132

10mm Flow through glass cell

916133

20mm Flow through glass cell

916134

30mm Flow through glass cell

916141

5mm Flow through Quartz cell

916142

10mm Flow through Quartz cell

916143

20mm Flow through Quartz cell

916144

30mm Flow through Quartz cell

900110

SIPPER SYSTEM

900130

PELTIER/SIPPER SYSTEM

900120

Paltier Unit

916633

LAMP,DEUTERIUM LAMP 10V, MILAS, used except for UV1150 PMT

900920

PRINTER, STYLUS PRINTER SP-T40PH

900510

CELL HOLDER, SINGLE CELL HOLDER FOR 10MM SQUARE CUVETTE

900520

CELL HOLDER, 1-CELL HOLDER FOR 100MM SQUARE CUVETTE

961634

LAMP, TUNGSTEN LAMP,12V20W TUNGSTEN LAMP (OSRAM),used UV5-9,UV6

960140

CONTROLLER, SIPPER SYSTEM A1100

SoftWare

SoftWare Version 2

Accessories
