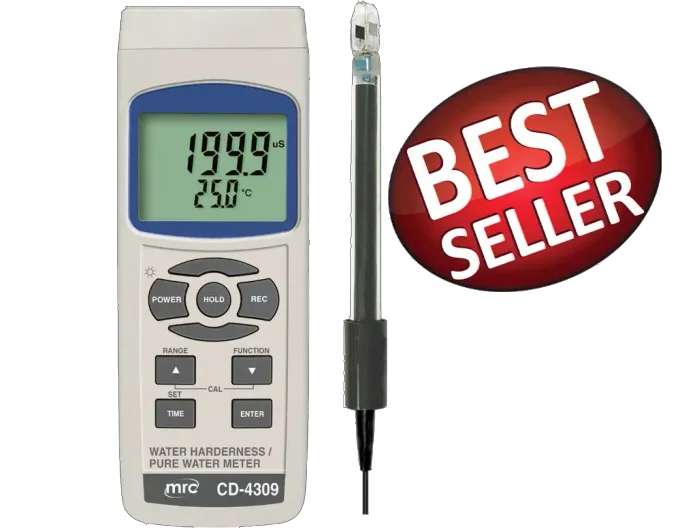

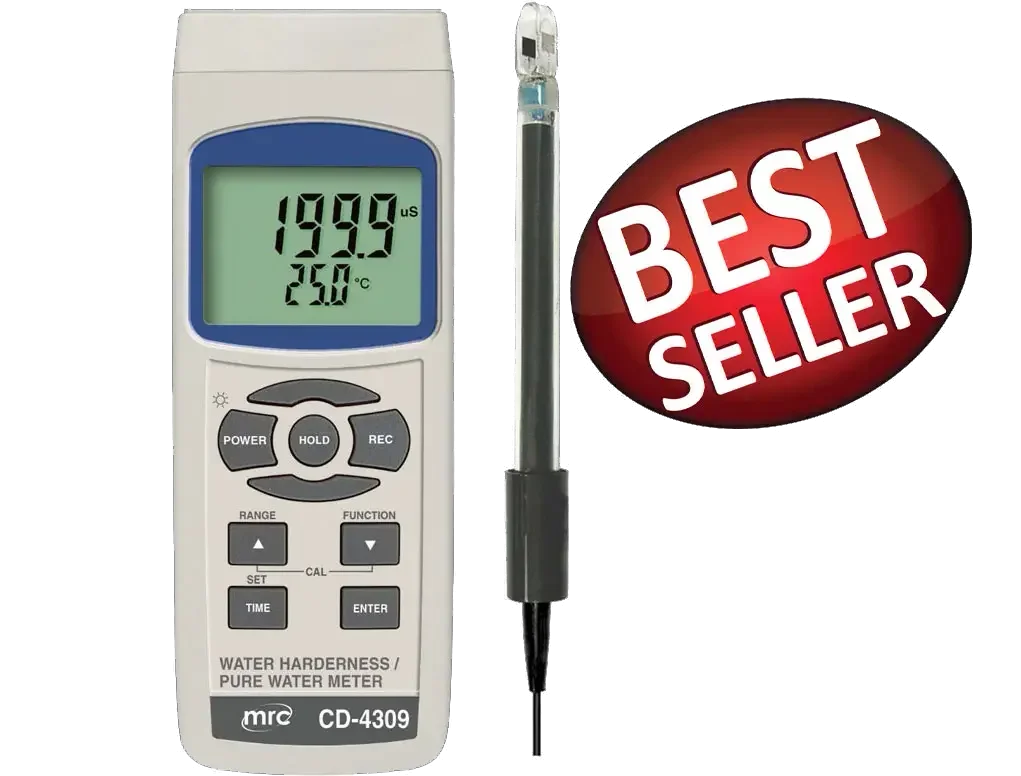

    Conductivity ,TDS, Salt, Temp, Hardness, Resistivity meter

    Conductivity ,TDS, Salt, Temp, Hardness, Resistivity meter 3

    Conductivity ,TDS, Salt, Temp, Hardness, Resistivity meter 3

    * Function : Conductivity ,TDS, Salt, Temp, Hardness.
    * High conductivity resolution, 5 ranges : 20 uS x 0.01 uS, 200 uS x 0.1 uS,
    2 mS x 0.001 mS, 20 mS x 0.01 mS, 200 mS x 0.1 mS.
    * Resistivity, 5 ranges :
    100 M -cm, 10 M -cm, 1 M -cm, 100 K -cm,10 K -cm.
    * TDS, 5 ranges :
    20/200/2,000/20,000/ 200,000 ppm.
    * Hardness, 5 ranges :
    10/100/1,000/ 10,000/100,000 ppm.
    * Pt glass electrode, high performance for pure water low conductivity
    measurement.
    * Automatic temp compensation.
    * It can select Temp. Coefficient of measurement solution.
    * Record ( Max ,Min ) Data hold, zero adjust.
    * Dot matrix LCD display.
    * Power by UM3/AA ( 1.5V ) x 6 batteries or DC 9V adapter.
    * RS232/USB computer interface.
    READ MORE >
      CATALOG NUMBER: CD-4309
      $0
      • TECHNICAL DATA
      • FUNCTIONS
      • DESCRIPTION
      • ACCESSORIES
      • VIDEOS
      • DOCUMENTATION
      • DOWNLOAD
      • REQUEST A QUOTE
      Type
      Portable
      Parameters
      Conductivity,TDS,Salt,Temperature, Hardness,Resistivity
      Conductivity Ranges (S/cm)
      20uS, 200uS, 2mS, 20mS, 200mS
      Data Logging ?
      No
      Communication Port ?
      Yes
      * Function : Conductivity ,TDS, Salt, Temp, Hardness.
      * High conductivity resolution, 5 ranges : 20 uS x 0.01 uS, 200 uS x 0.1 uS,
      2 mS x 0.001 mS, 20 mS x 0.01 mS, 200 mS x 0.1 mS.
      * Resistivity, 5 ranges :
      100 M -cm, 10 M -cm, 1 M -cm, 100 K -cm,10 K -cm.
      * TDS, 5 ranges :
      20/200/2,000/20,000/ 200,000 ppm.
      * Hardness, 5 ranges :
      10/100/1,000/ 10,000/100,000 ppm.
      * Pt glass electrode, high performance for pure water low conductivity
      measurement.
      * Automatic temp compensation.
      * It can select Temp. Coefficient of measurement solution.
      * Record ( Max ,Min ) Data hold, zero adjust.
      * Dot matrix LCD display.
      * Power by UM3/AA ( 1.5V ) x 6 batteries or DC 9V adapter.
      * RS232/USB computer interface.

      Specifications



      Operation Manual



      TECHNICAL DATA

        Type
        Portable
        Parameters
        Conductivity,TDS,Salt,Temperature, Hardness,Resistivity
        Conductivity Ranges (S/cm)
        20uS, 200uS, 2mS, 20mS, 200mS
        Data Logging ?
        No
        Communication Port ?
        Yes
        Specifications
        CD-4309_SPEC.pdf
        Operation Manual
        CD-4309_OPR.pdf

      FUNCTIONS

      DESCRIPTION

      * Function : Conductivity ,TDS, Salt, Temp, Hardness.
      * High conductivity resolution, 5 ranges : 20 uS x 0.01 uS, 200 uS x 0.1 uS,
      2 mS x 0.001 mS, 20 mS x 0.01 mS, 200 mS x 0.1 mS.
      * Resistivity, 5 ranges :
      100 M -cm, 10 M -cm, 1 M -cm, 100 K -cm,10 K -cm.
      * TDS, 5 ranges :
      20/200/2,000/20,000/ 200,000 ppm.
      * Hardness, 5 ranges :
      10/100/1,000/ 10,000/100,000 ppm.
      * Pt glass electrode, high performance for pure water low conductivity
      measurement.
      * Automatic temp compensation.
      * It can select Temp. Coefficient of measurement solution.
      * Record ( Max ,Min ) Data hold, zero adjust.
      * Dot matrix LCD display.
      * Power by UM3/AA ( 1.5V ) x 6 batteries or DC 9V adapter.
      * RS232/USB computer interface.

      ACCESSORIES

      VIDEOS

      DOCUMENTATION

      Specifications



      Operation Manual



      DOWNLOAD

      REQUEST A QUOTE

      DC 9V ADAPTOR
      AP-9VA

      DC 9V ADAPTOR

      EXTENSION CABLE 5 meters for probe
      EXCB-05

      EXTENSION CABLE 5 meters for probe

      Water resistant bag for measurment device 285X167 mm
      WP-11

      Water resistant bag for measurment device 185X167 mm

      DATA ACQUISITION SOFTWARE
      SW-U801-WIN

      Data Acquisition Software : SW-E816

      Excel Data Acquisition Software - for Win.10
      SW-E802

      Excel Data Acquisition Software - for Win.10

      USB CABLE
      USB-01

      USB CABLE

      RS-232 CABLE
      UPCB-02

      RS-232 CABLE

      CONDUCTIVITY STANDARD 1 BOTTLES
      EC-84-P

      Conductivity Standard 2 Bottles -- 1 Pint Each

      CONDUCTIVITY STANDARD 1 BOTTLES
      EC-1413-P

      Conductivity Standard 2 Bottles -- 1 Pint Each

      CONDUCTIVITY STANDARD 1 BOTTLE -- 1 PINT EACH
      EC-12880-P

      Conductivity Standard 2 Bottles -- 1 Pint Each
