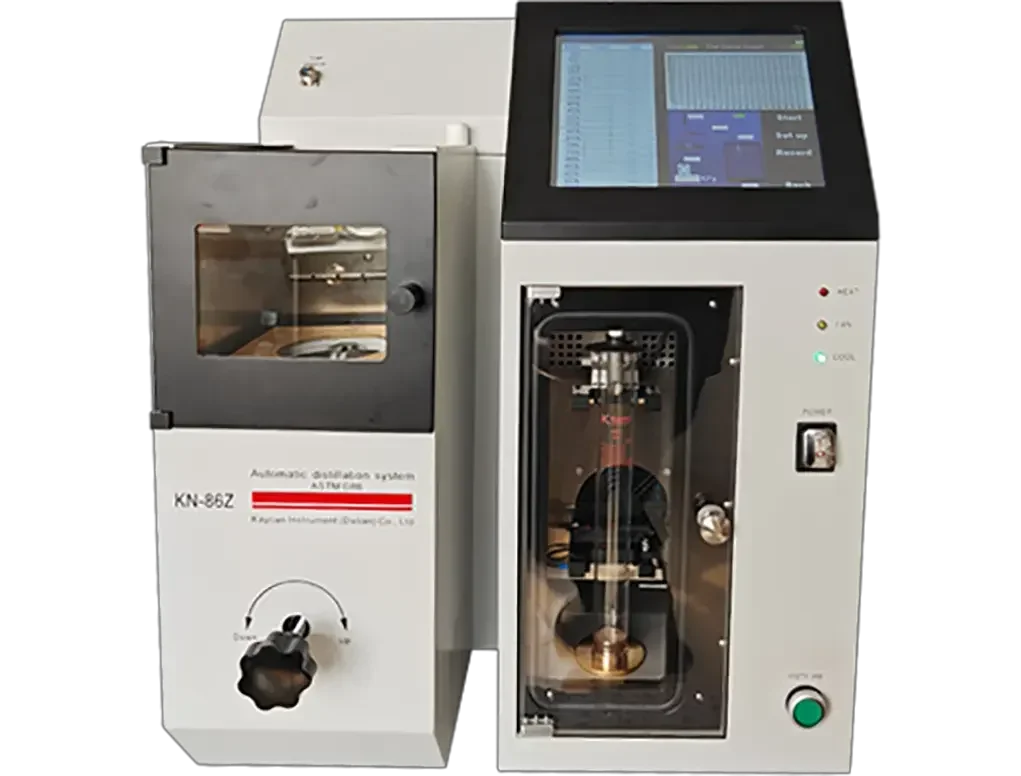

Technical Specification for KN-86Z Automatic Hydrocarbon Distillation System. Base Configuration: Fully automated boiling range characterization system complying with ASTM D86, IP 123, and ISO 3405. Features 10-inch color touch LCD interface, precise internal solid-state heating elements, and a high-accuracy level tracking assembly utilizing a linear stepper motor coupled with a Japanese Keyence laser tracker for cylinder volume reading. Operational Performance: Steam temperature range 0.0°C to 400.0°C (+/-0.1°C accuracy), distillation chamber oven range 0.0°C to 500.0°C, volume measurement resolution 0.1 mL. Built-in Safety Features: Integrated optical fire detection circuit with rear-panel connection ports for dedicated customer-supplied Nitrogen (N2) or Carbon Dioxide (CO2) active fire suppression lines. Utility Configuration: Heating load 2kW, cooling load 0.5kW, Total power AC 220V +/-10%, 50Hz. Suitable for motor fuels, aviation gasoline, jet fuels, diesel, kerosene, and special boiling point solvents.
