Pharmaceutical laboratories rely heavily on precise, regulatory-compliant instruments to evaluate the safety, efficacy, and quality of drug products. Among the most crucial devices in any pharma QC or R&D setting are dissolution testers, disintegration testers, and tablet grinders — each fulfilling a unique but interconnected role in drug analysis and development.

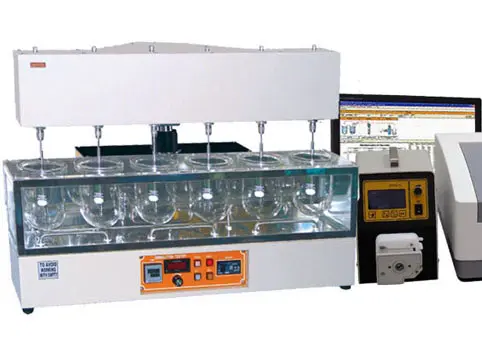

Dissolution Tester: Ensuring Predictable Drug Release
What is a Dissolution Tester?
A dissolution tester measures the rate at which a drug dissolves in a given medium. This is vital because a drug’s bioavailability — how efficiently it is absorbed into the bloodstream — largely depends on how quickly it dissolves once ingested.
Working Principle
Typically, tablets or capsules are placed in vessels filled with a dissolution medium, stirred using paddles or baskets at controlled temperatures. Samples are withdrawn at set intervals and analyzed using UV spectroscopy or HPLC.
Applications
USP and Regulatory Compliance
Dissolution testers must comply with USP <711>, EP 2.9.3, and FDA standards, including strict controls on RPM, temperature (37.0°C ± 0.5°C), and sampling timing.
Key Features
-
Automated sampling and cleaning
-
High-precision RPM and temperature controls
-
Multiple vessels (6, 7, or 8 positions)
-
Touchscreen interface with CFR Part 11 compliance
Maintenance Tips
-
Daily cleaning of paddles and shafts
-
Calibration with certified tablets (salicylic acid, prednisone)
-
Regular checks on vessel alignment and RPM
Disintegration Tester: First Step in Bioavailability
Purpose
A disintegration tester assesses how quickly a solid dosage form breaks apart in a liquid medium, a critical prerequisite for dissolution.
How it Works
The system consists of a basket rack that moves vertically in a temperature-controlled bath. Tablets are placed in tubes with screens at the bottom, and disintegration is confirmed visually or with sensors.
Pharmacopeial Methods
According to USP <701> and <2040>, the standard disintegration time for uncoated tablets is usually within 15 minutes. Delayed-release tablets require acid and buffer stage testing.
Disintegration vs. Dissolution
Disintegration is a mechanical process — breaking apart — while dissolution is a chemical process — dissolving. A tablet may disintegrate well but still fail dissolution testing.
Common Issues
-
Mesh damage causing false readings
-
Inconsistent bath temperature
-
Incorrect stroke count or timing
Tablet Grinder with Separated Cup: For Accurate Sample Preparation
Purpose and Importance
Pharmaceutical tablet grinders are essential for pulverizing solid dosage forms into fine powder. This is often the first step in dissolution testing or chemical assay.
Why a Separated Cup Design Matters
Grinders with separated cups eliminate cross-contamination between samples — critical in high-throughput labs or when analyzing potent compounds.
Advantages
-
Hygienic sample isolation
-
Easy cup replacement and sterilization
-
Reduced cleaning time
-
Ideal for cytotoxic or controlled substances
Applications
-
Preparing uniform powder for dissolution
-
Assay preparation for active pharmaceutical ingredients (API)
-
Particle size reduction for blend uniformity studies
Integrated Workflow: From Tablet to Test Report
Pharmaceutical laboratories often rely on a combined workflow:
-
Tablet is ground using a separated-cup grinder.
-
Portion is tested for disintegration.
-
Another portion is used for dissolution.
-
Data is analyzed via connected software platforms.
The integration of equipment into LIMS (Laboratory Information Management Systems) and electronic data capture systems ensures traceability and supports 21 CFR Part 11 compliance.
Compliance and Calibration Essentials
Proper operation isn't just about performance; it's about meeting regulatory expectations:
-
Dissolution Testers: Calibrate with USP Performance Verification Tablets
-
Disintegration Testers: Confirm stroke length and timing
-
Tablet Grinders: Validate absence of cross-contamination via blank runs
Applications in Generic and Branded Drug Development
These instruments are widely used in:
-
Generic drug manufacturers for bioequivalence proof
-
Innovator companies for formulation optimization
-
Contract testing laboratories for third-party QC
-
Clinical trials for batch release testing
