    80 liter Automatic Vertical Autoclave

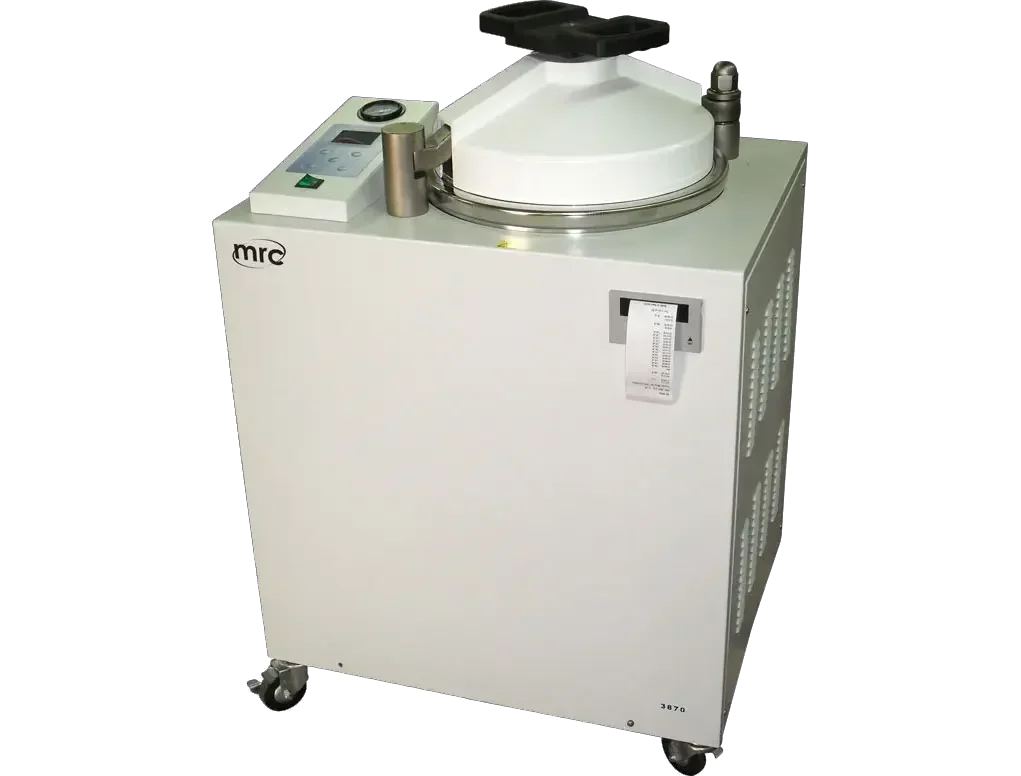

    80 liter Automatic autoclave 3

    80 liter Automatic autoclave 3

    80 liter Automatic autoclave
    ● Dimension: 688x546x1030(mm).
    ● Inside Dim: 386mm diameter, 695mm deep.
    ● Micro-computer control.
    ● Automatic control over heating, sterilizing, steam exhaust, filling water and dryness.
    ● Dynamic LCD display.
    ● Horizontal sliding door.
    ● Designed pressure: 0.26Mpa.
    ● Designed temperature: 150°C.
    ● Rated working pressure: 0.22Mpa.
    ● Sterilization temperature: 105°C-136°C.
    ● Sterilization time range: 0-99min.
    ● SUS 304 Material of chamber: stainless steel
    ● Electric power 4500 watts
    ● Default 220V/50Hz, single phase.
    ● Pre-ordered 380V/50Hz, three phases.
    ● stainless steel sterilization baskets. 2 Accessories:
    ● Mini printer process recorder can be attached - Optional.
    READ MORE >
    • Type: Vertical
    CATALOG NUMBER: STE-V-80
    WEIGHT(Kg)  140.00
    L(m)  0.81
    W(m)  0.92
    H(m)  1.28
    $0
    • TECHNICAL DATA
    • FUNCTIONS
    • DESCRIPTION
    • ACCESSORIES
    • VIDEOS
    • DOCUMENTATION
    • DOWNLOAD
    • REQUEST A QUOTE
    Type
    Vertical
    Volume (L)
    80
    Design Pressure (MPa)
    0.26
    External Size (mm)
    W688xD546x1030
    Internal Size (mm)
    Φ386xD695
    Weight (kg)
    128
    Power Consumption
    4500W
    Power supply
    380V/50Hz
    80 liter Automatic autoclave
    ● Dimension: 688x546x1030(mm).
    ● Inside Dim: 386mm diameter, 695mm deep.
    ● Micro-computer control.
    ● Automatic control over heating, sterilizing, steam exhaust, filling water and dryness.
    ● Dynamic LCD display.
    ● Horizontal sliding door.
    ● Designed pressure: 0.26Mpa.
    ● Designed temperature: 150°C.
    ● Rated working pressure: 0.22Mpa.
    ● Sterilization temperature: 105°C-136°C.
    ● Sterilization time range: 0-99min.
    ● SUS 304 Material of chamber: stainless steel
    ● Electric power 4500 watts
    ● Default 220V/50Hz, single phase.
    ● Pre-ordered 380V/50Hz, three phases.
    ● stainless steel sterilization baskets. 2 Accessories:
    ● Mini printer process recorder can be attached - Optional.

    Operation Manual



    CE



    TECHNICAL DATA

      Operation Manual
      STE-V-80_OPR.PDF
      CE
      STE-V-80_CE.PDF
      Type
      Vertical
      Volume (L)
      80
      Design Pressure (MPa)
      0.26
      External Size (mm)
      W688xD546x1030
      Internal Size (mm)
      Φ386xD695
      Weight (kg)
      128
      Power Consumption
      4500W
      Power supply
      380V/50Hz

    FUNCTIONS

    DESCRIPTION

    80 liter Automatic autoclave
    ● Dimension: 688x546x1030(mm).
    ● Inside Dim: 386mm diameter, 695mm deep.
    ● Micro-computer control.
    ● Automatic control over heating, sterilizing, steam exhaust, filling water and dryness.
    ● Dynamic LCD display.
    ● Horizontal sliding door.
    ● Designed pressure: 0.26Mpa.
    ● Designed temperature: 150°C.
    ● Rated working pressure: 0.22Mpa.
    ● Sterilization temperature: 105°C-136°C.
    ● Sterilization time range: 0-99min.
    ● SUS 304 Material of chamber: stainless steel
    ● Electric power 4500 watts
    ● Default 220V/50Hz, single phase.
    ● Pre-ordered 380V/50Hz, three phases.
    ● stainless steel sterilization baskets. 2 Accessories:
    ● Mini printer process recorder can be attached - Optional.
