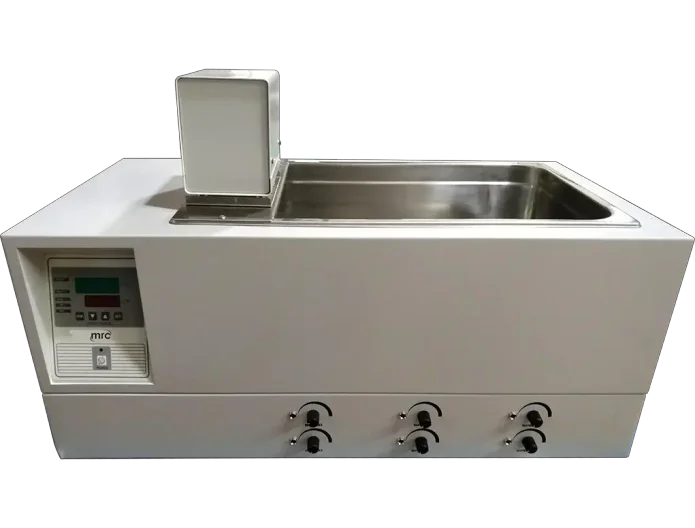

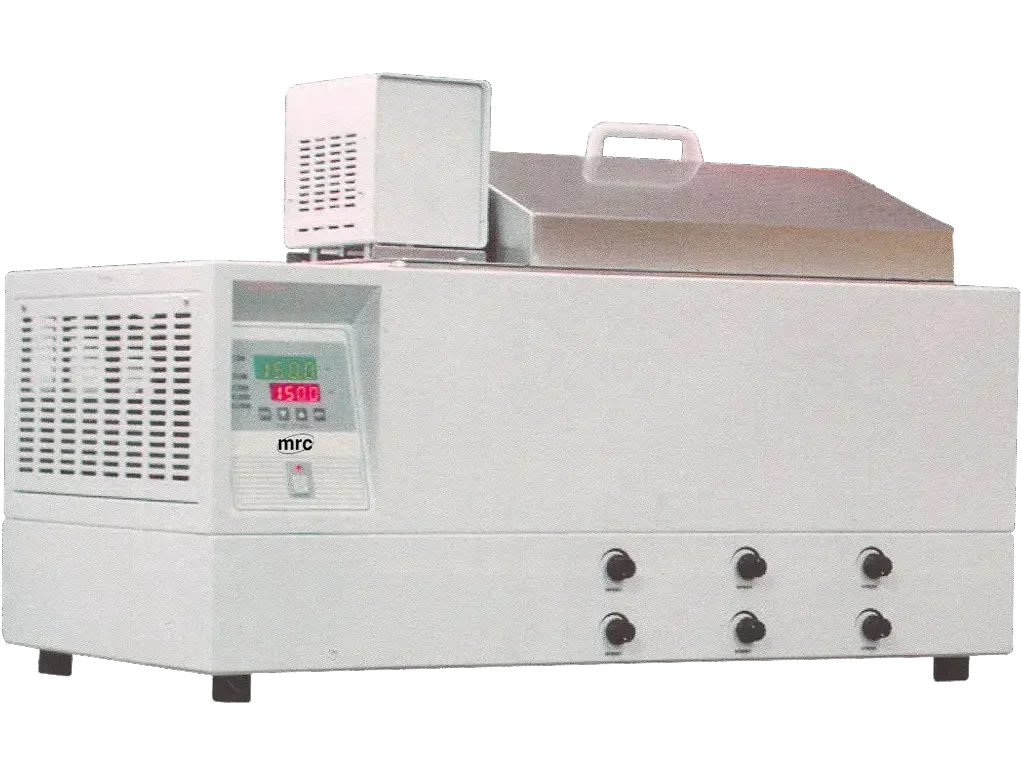

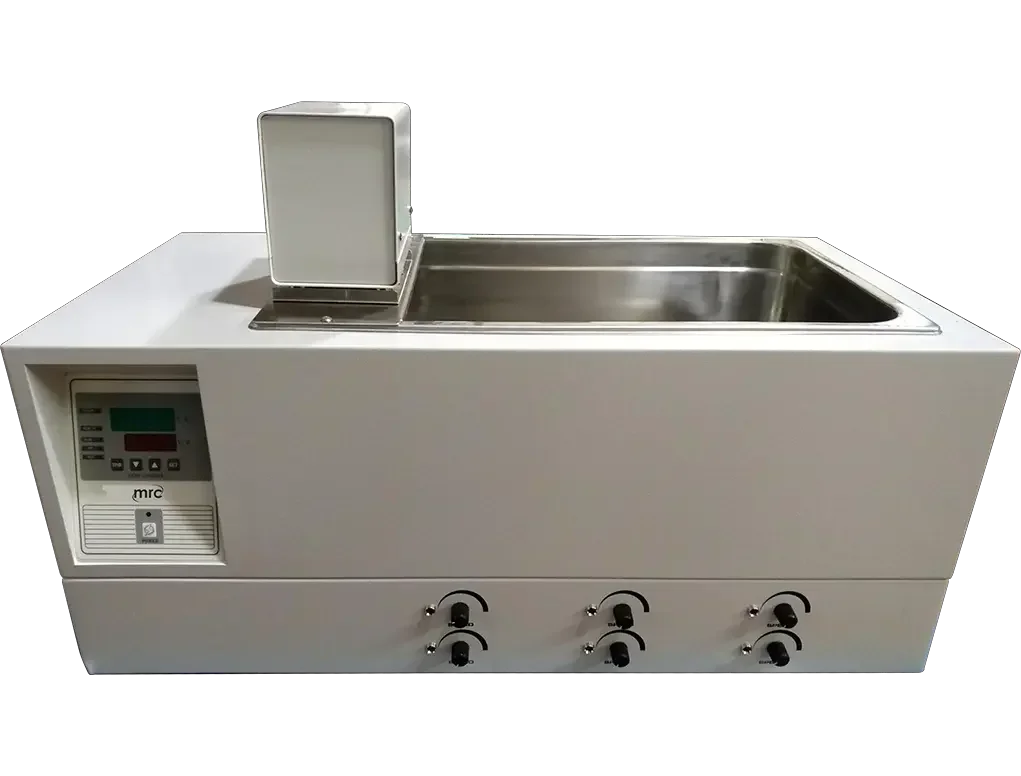

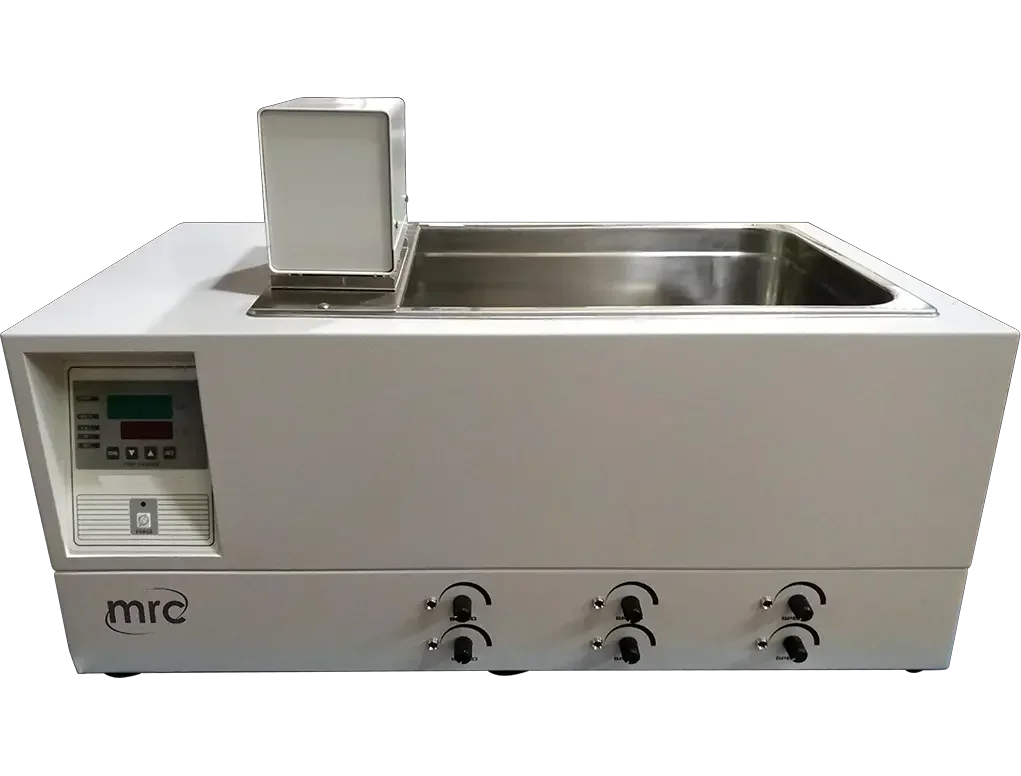

    20 liter Oil bath With 6X Magnetic Stirrer

    20 liter Oil bath With 6X Magnetic Stirrer 3

    20 liter Oil bath With 6X Magnetic Stirrer 3

    ● 6 Individually stirring positions.
    ● Microprocessor based PID controller.
    ● Stirrer accommodates vessels up to 1L.
    ● Stirring speed adjustable from 300 to 1500rpm
    (Medium solution: water)
    Tank Capacity 20 Liters
    Temperature working range Ambient +5°c-200°c
    Stability (at 37°c) ±0.1°c
    Stirring By built-in immersion circulating pump
    Heater 2 KW
    Standard Accessory Gable cover
    ● Digital timer can be set from 0 to 9999 (min/hr), and
    power preset On/Off function.
    Internal Dimension (mm) W495 x D295 x H15
    Overall Dimension (mm) W770 x D395 x H370
    Power Source 110V/220V 50Hz/60hz
    READ MORE >
      CATALOG NUMBER: OBH20-6
      $0
      • TECHNICAL DATA
      • FUNCTIONS
      • DESCRIPTION
      • ACCESSORIES
      • VIDEOS
      • DOCUMENTATION
      • DOWNLOAD
      • REQUEST A QUOTE
      Volume (L)
      20
      Max. Temperature (°C)
      100
      Heating Consumption (W)
      1200
      ● 6 Individually stirring positions.
      ● Microprocessor based PID controller.
      ● Stirrer accommodates vessels up to 1L.
      ● Stirring speed adjustable from 300 to 1500rpm
      (Medium solution: water)
      Tank Capacity 20 Liters
      Temperature working range Ambient +5°c-200°c
      Stability (at 37°c) ±0.1°c
      Stirring By built-in immersion circulating pump
      Heater 2 KW
      Standard Accessory Gable cover
      ● Digital timer can be set from 0 to 9999 (min/hr), and
      power preset On/Off function.
      Internal Dimension (mm) W495 x D295 x H15
      Overall Dimension (mm) W770 x D395 x H370
      Power Source 110V/220V 50Hz/60hz

      Specifications



      Operation Manual



      TECHNICAL DATA

        Specifications
        OBH20-6_SPEC.pdf
        Operation Manual
        OBH20-6_OPR.pdf
        Volume (L)
        20
        Max. Temperature (°C)
        100
        Heating Consumption (W)
        1200

      FUNCTIONS

      DESCRIPTION

      ● 6 Individually stirring positions.
      ● Microprocessor based PID controller.
      ● Stirrer accommodates vessels up to 1L.
      ● Stirring speed adjustable from 300 to 1500rpm
      (Medium solution: water)
      Tank Capacity 20 Liters
      Temperature working range Ambient +5°c-200°c
      Stability (at 37°c) ±0.1°c
      Stirring By built-in immersion circulating pump
      Heater 2 KW
      Standard Accessory Gable cover
      ● Digital timer can be set from 0 to 9999 (min/hr), and
      power preset On/Off function.
      Internal Dimension (mm) W495 x D295 x H15
      Overall Dimension (mm) W770 x D395 x H370
      Power Source 110V/220V 50Hz/60hz

      ACCESSORIES

      VIDEOS

      DOCUMENTATION

      Specifications



      Operation Manual



      DOWNLOAD

      REQUEST A QUOTE
